Nicks Trix - Phrogman BuildBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

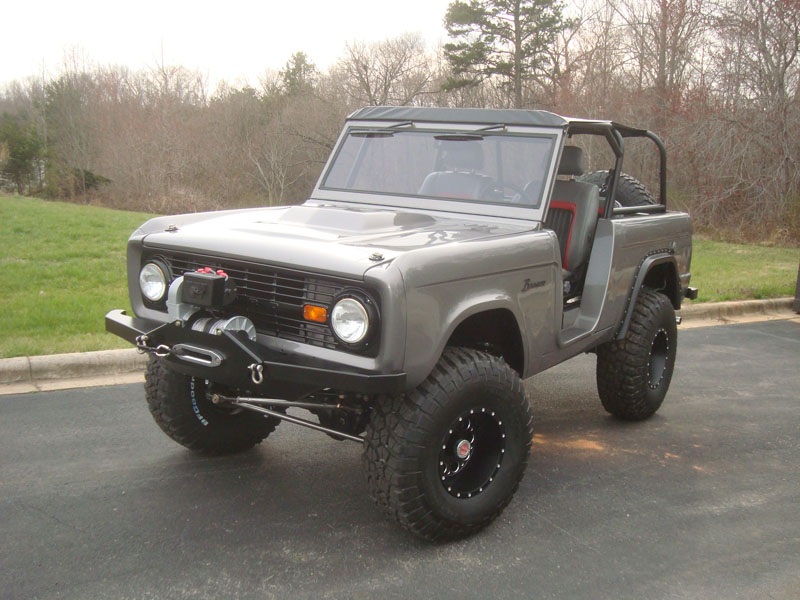

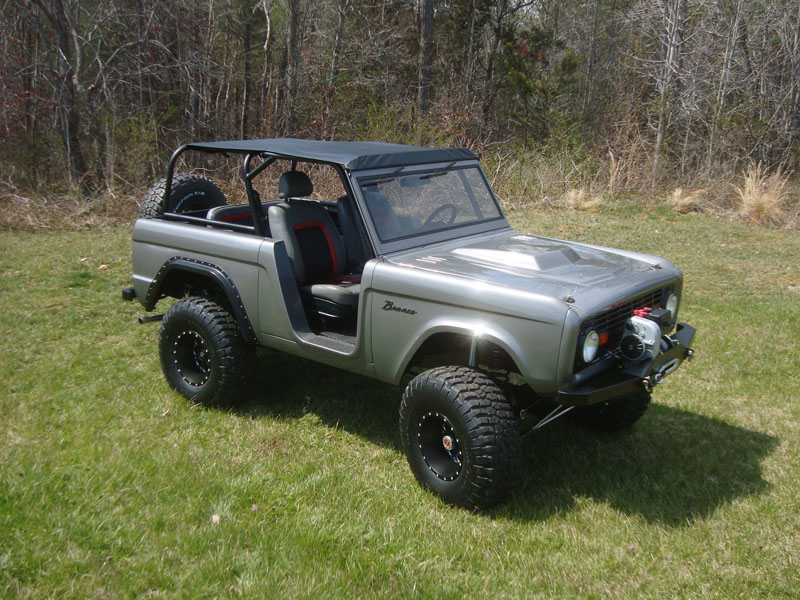

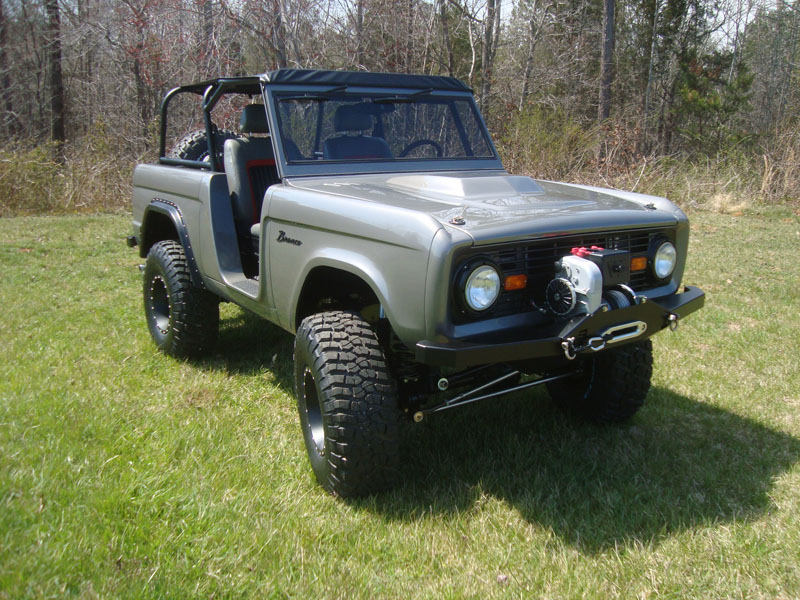

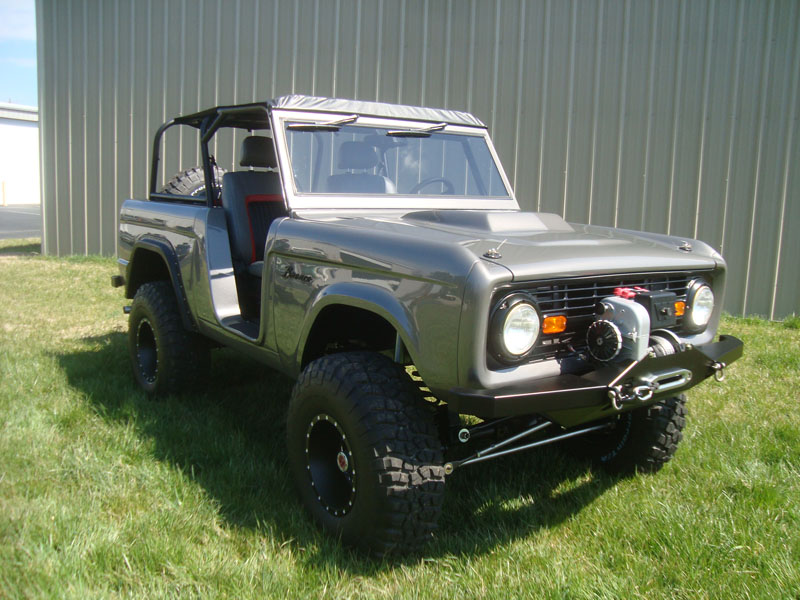

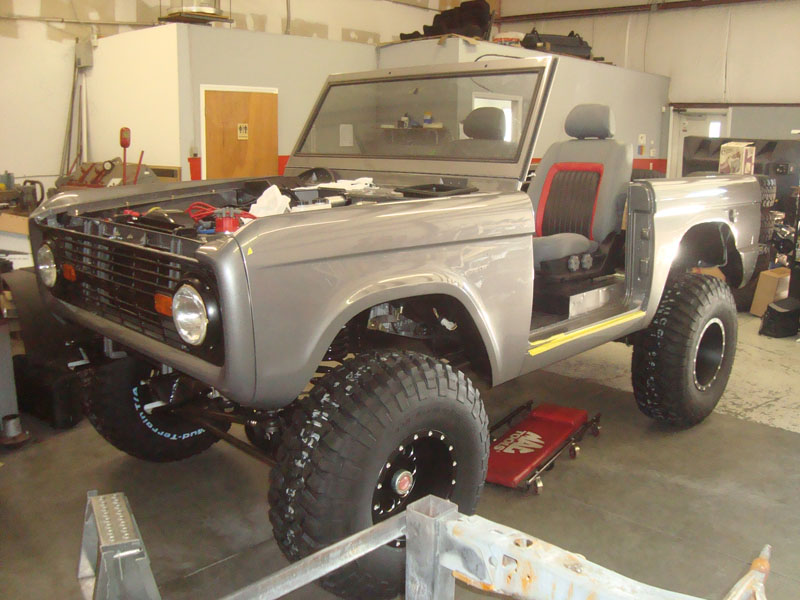

1966 Bronco

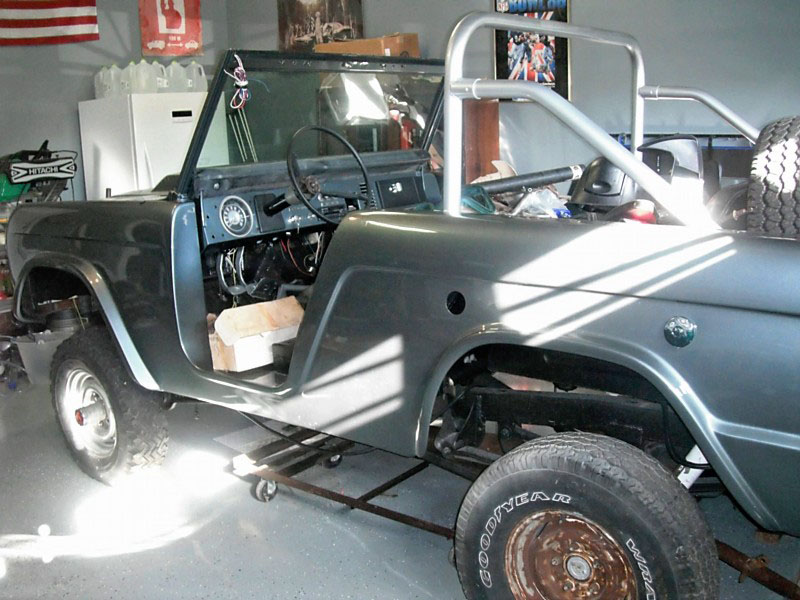

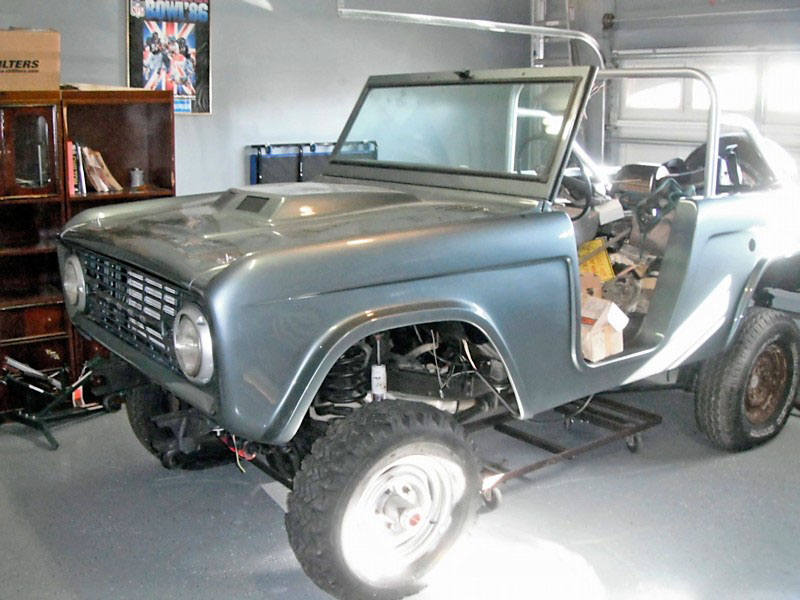

Convert a hodgepodge non-operational mess of a truck into a long time dream come true.

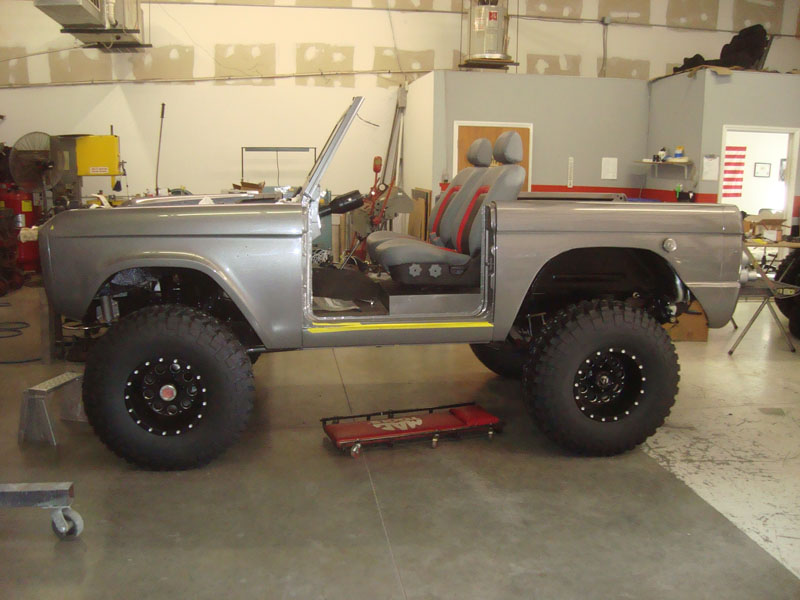

 Bronco Build Photo Gallery
01 02 03
04 05 06
07 08 09
10 11 12
13 14 15
16 17 18
19 20 21
22 23 24
25 26 27
28 29 30
31 32 33
34 35 36
37 38 39
40 41 42
43 44 45
46 47 48
49 50 51
52 53 54
55 56 57
58 59 60
61 62 63
64 65 66
67 68 70
71 72 73
71 72 73
71 72 73

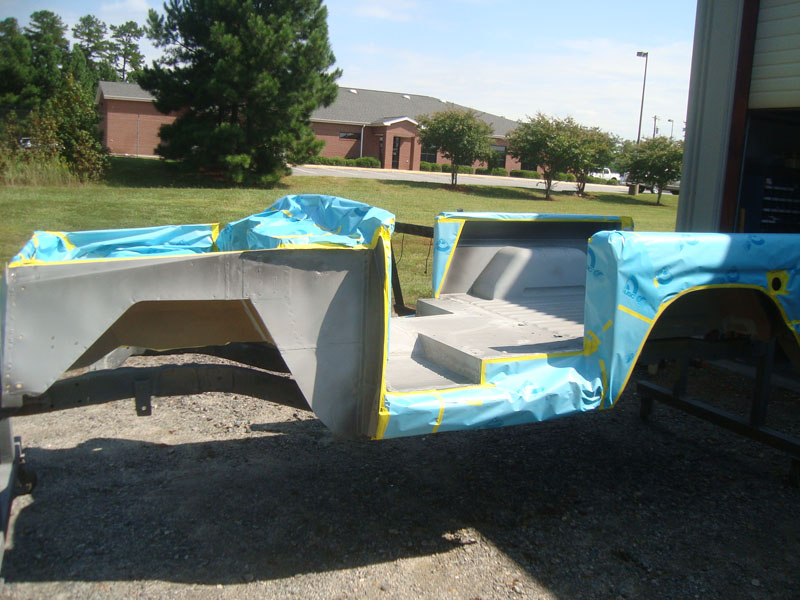

Body

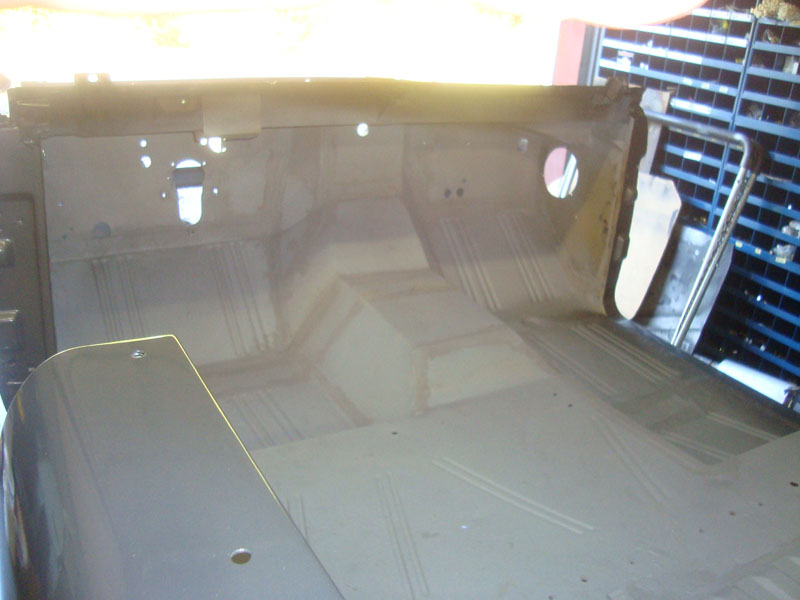

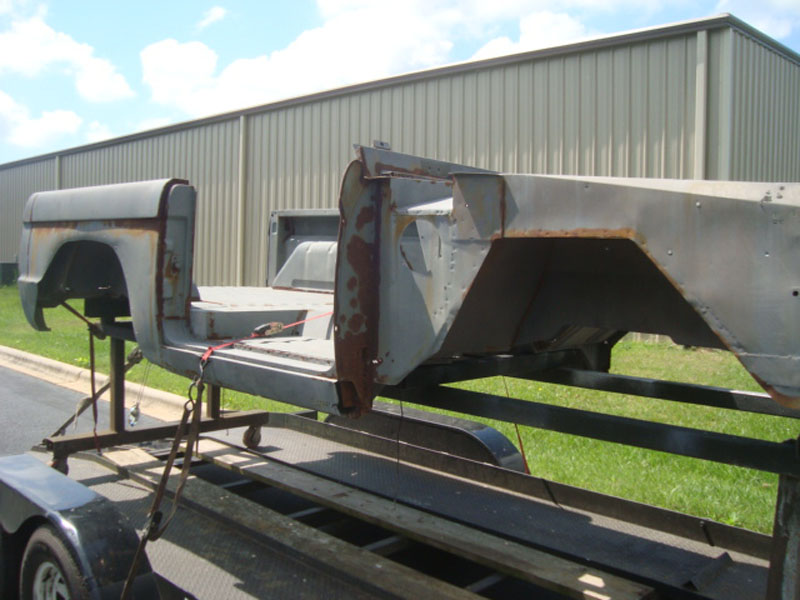

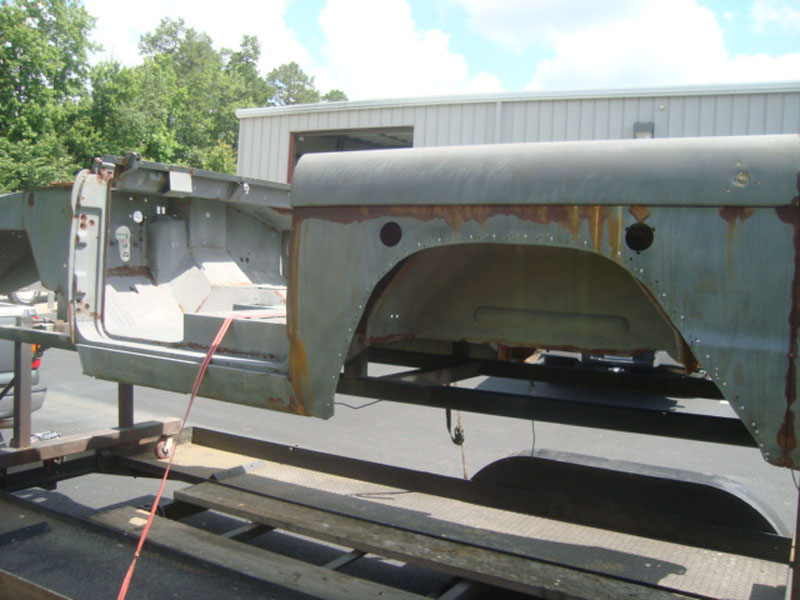

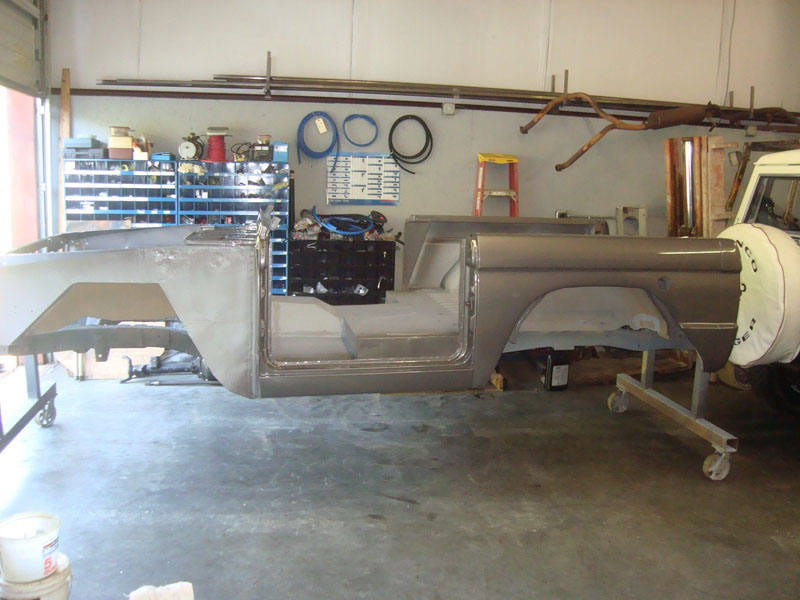

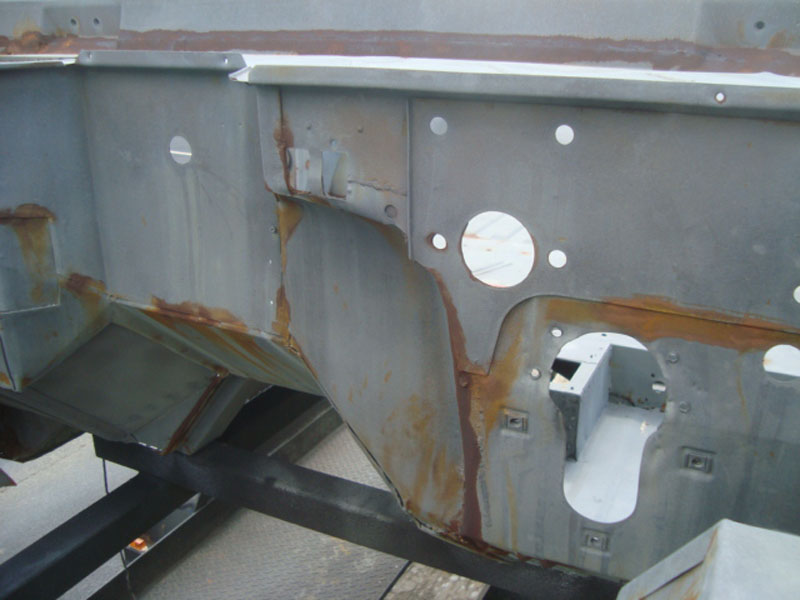

  • Body was stripped by Diversified Finishers
  • Body & paint by Chuck Schenck Autobody
  • Paint PPG DBC base coat

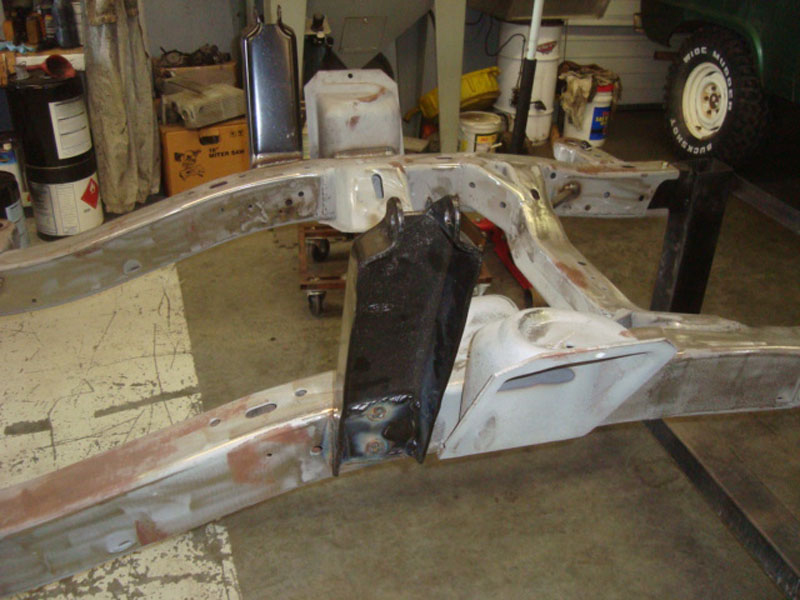

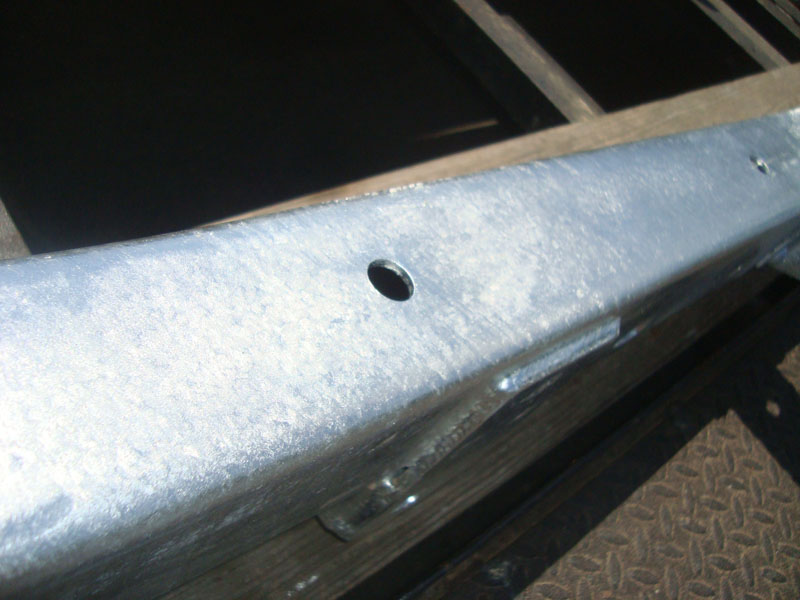

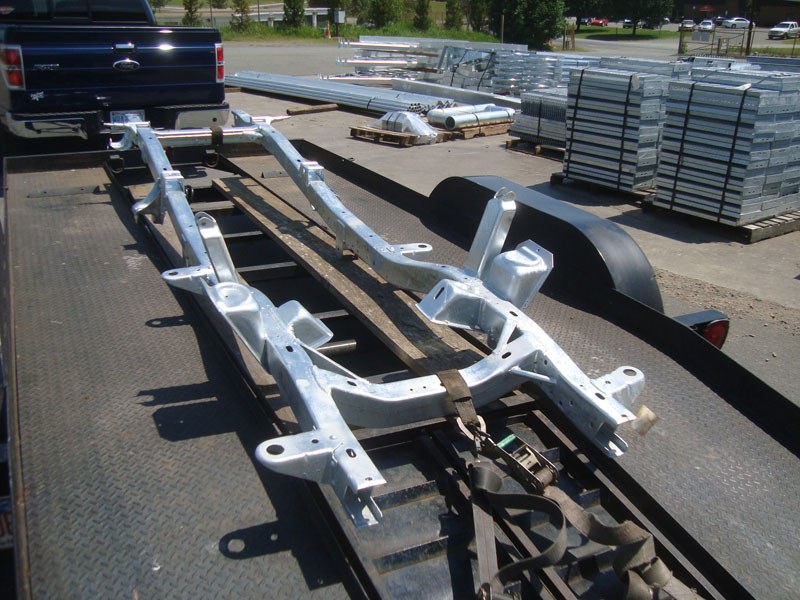

  • Chassis is hot dip galvanized

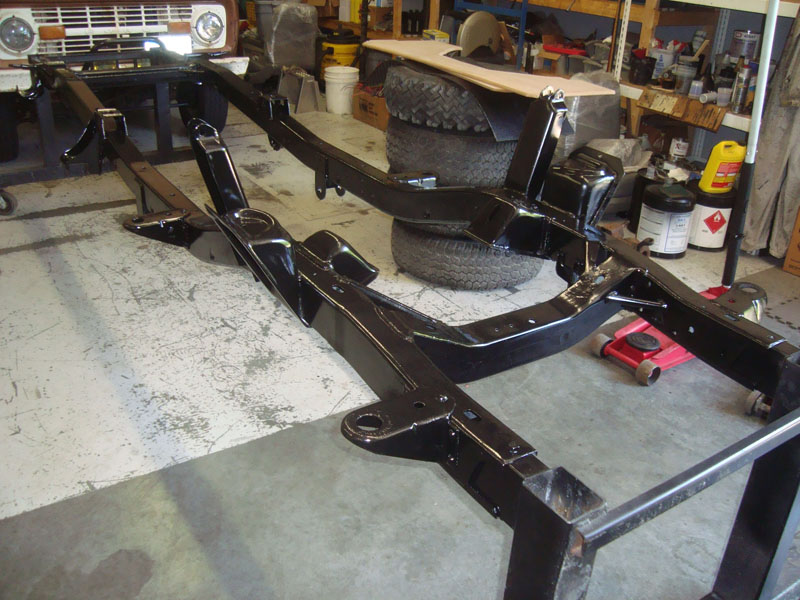

  • Running gear and chassis are all painted in KBS coatings

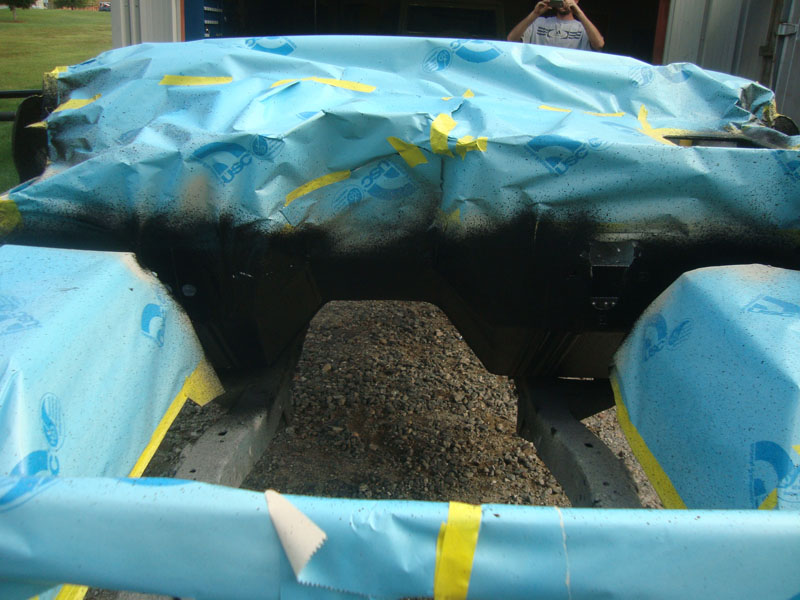

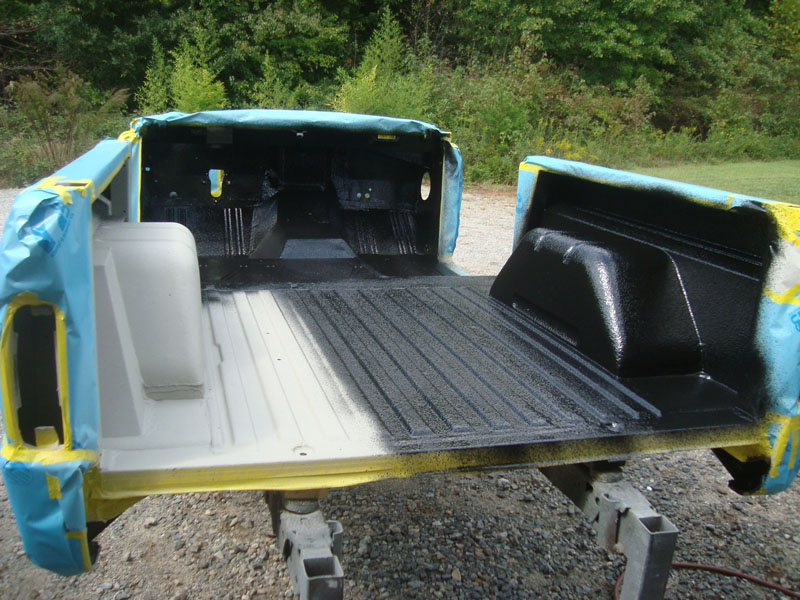

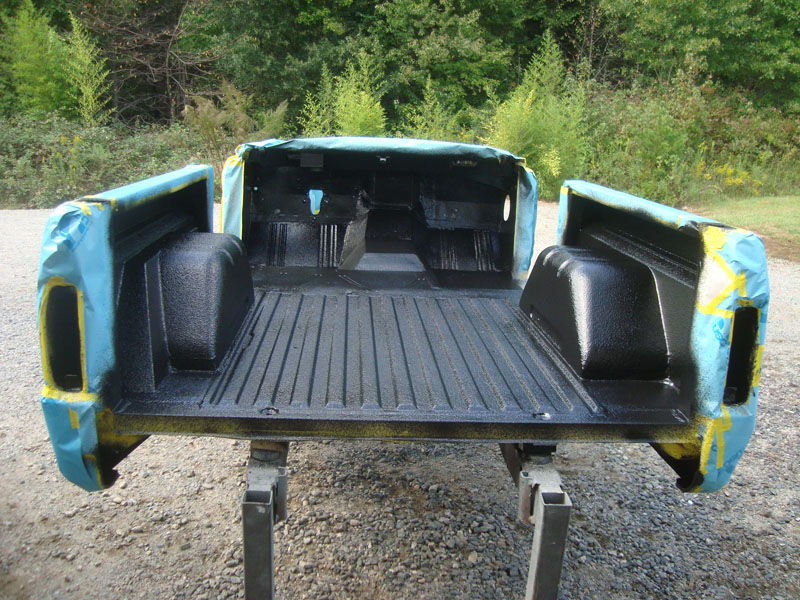

  • Bedliner sprayed inside & full underside
  • Ceramic heat & noise reducer
  • Scorpion Bed Liner & HNR used
  • SEM seam sealers used exclusively

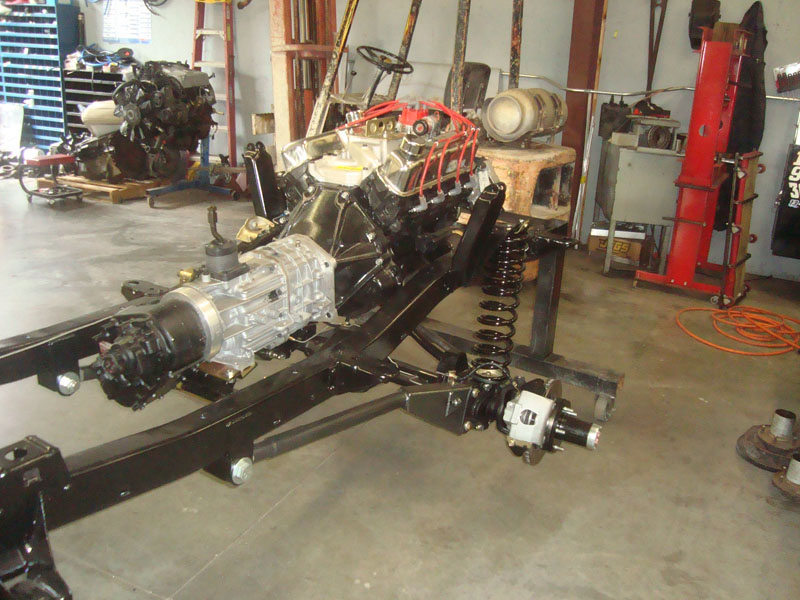

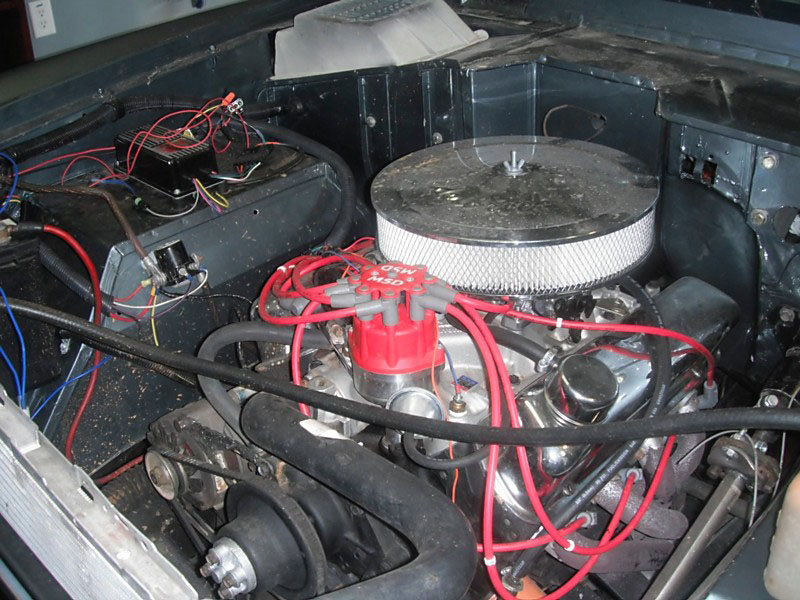

Drivetrain

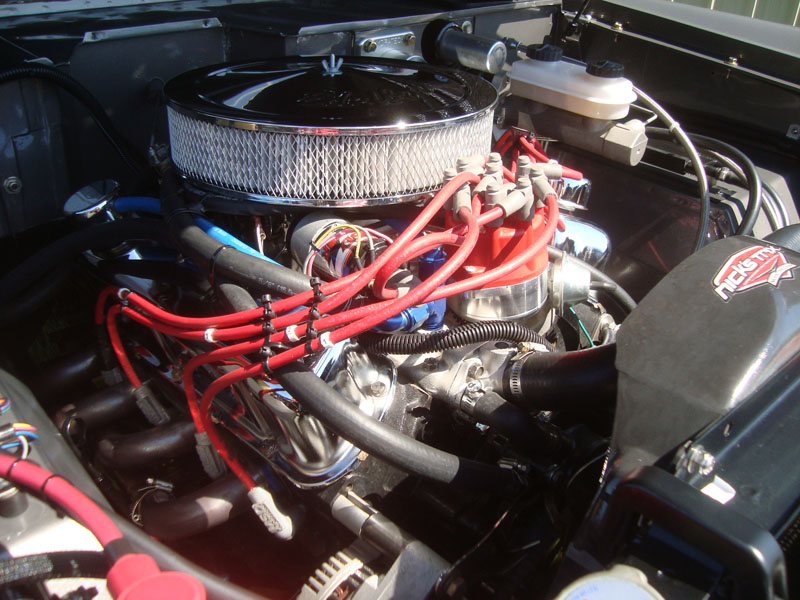

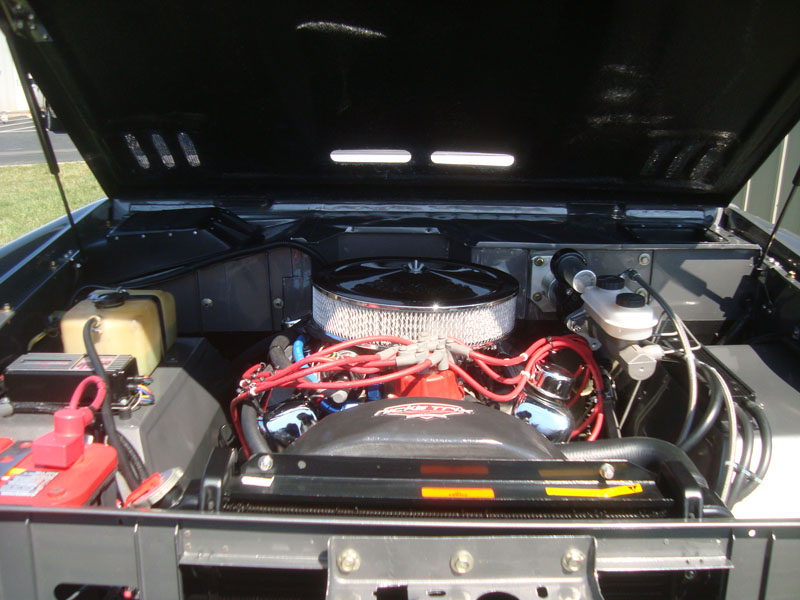

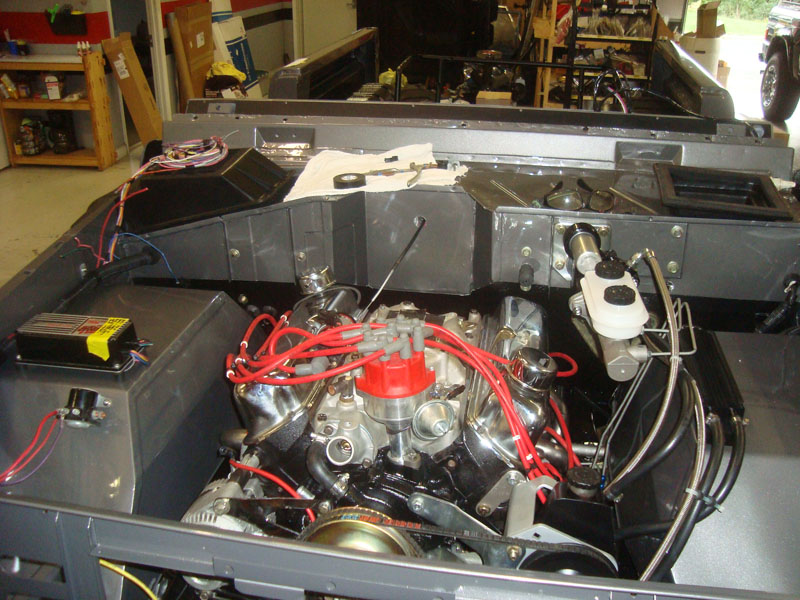

  • 302 4V
  • Edelbrock carburator & manifold
  • Comp Cams camshaft
  • MSD Ignition system

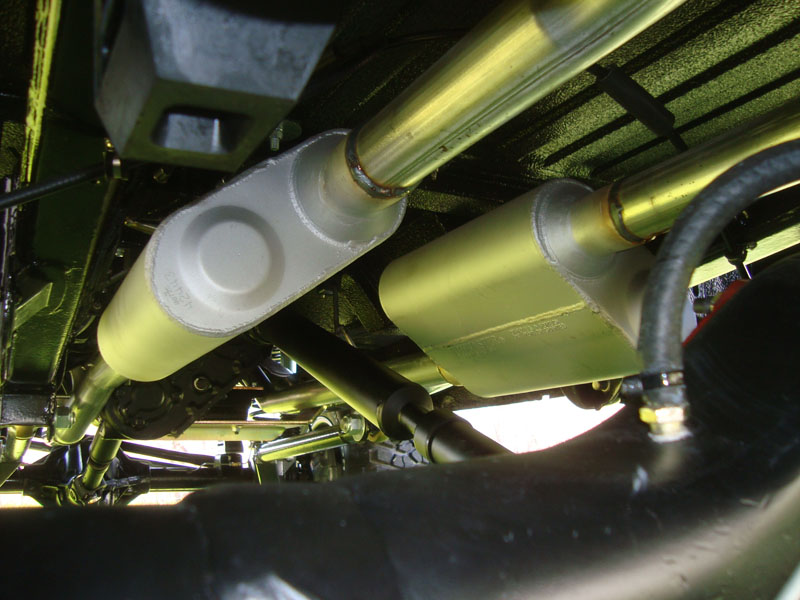

  • Headers & Flowmaster mufflers

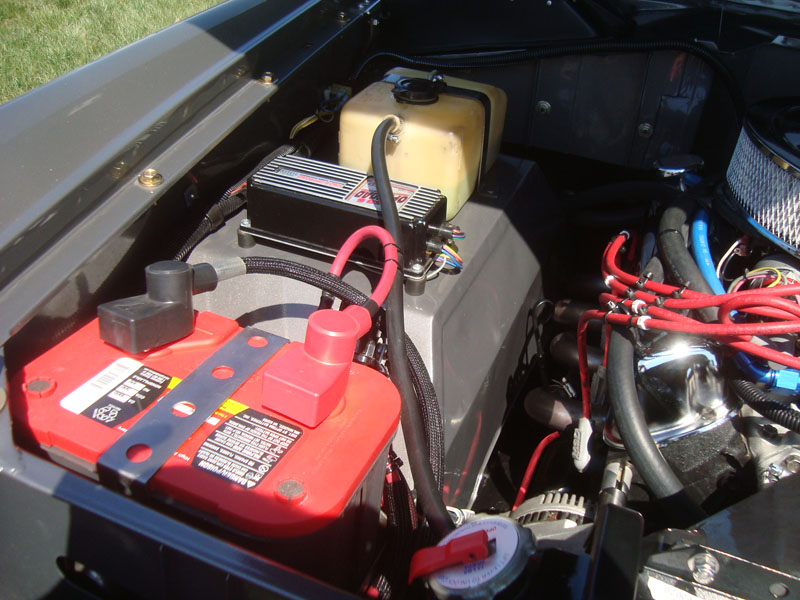

  • Optima Red Top battery
  • 3G high output alternator
Drivetrain
  • NV 3550 5 speed transmission

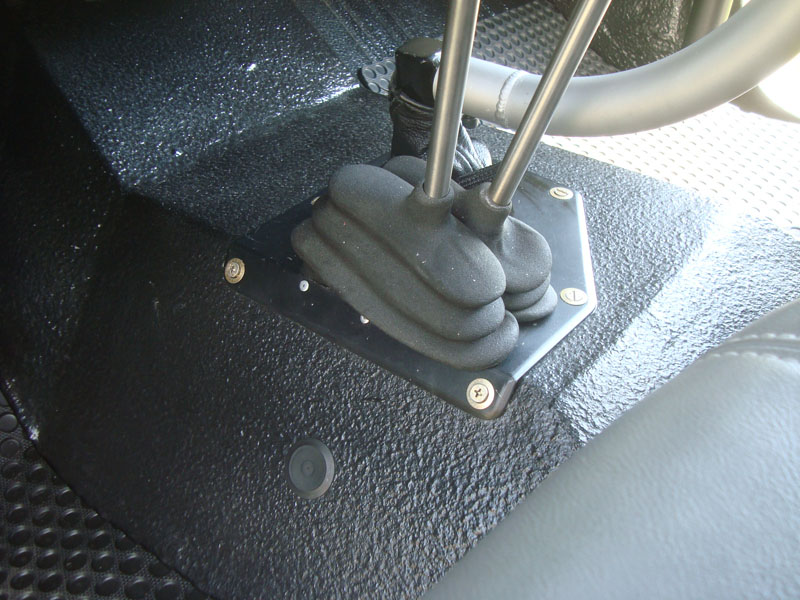

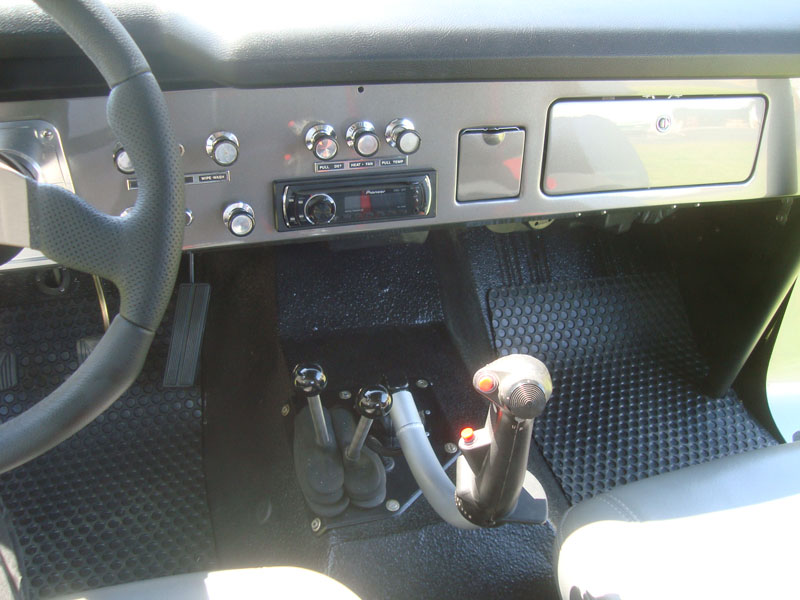

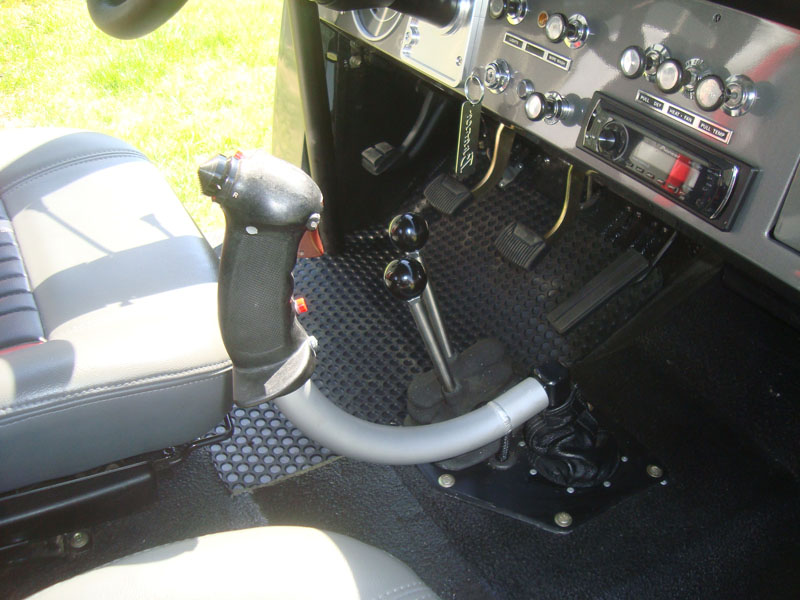

  • Custom shifter package using helicopter joystick control head

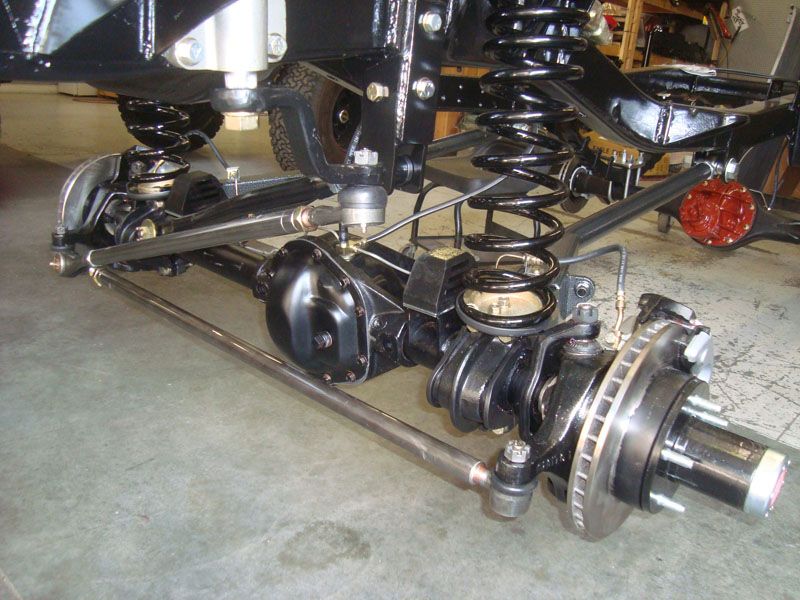

  • Dana 20 transfer case/completely rebuilt
  • 4:56 gear ratio with Trac Loc differentials. Gear work by Corey Transmission

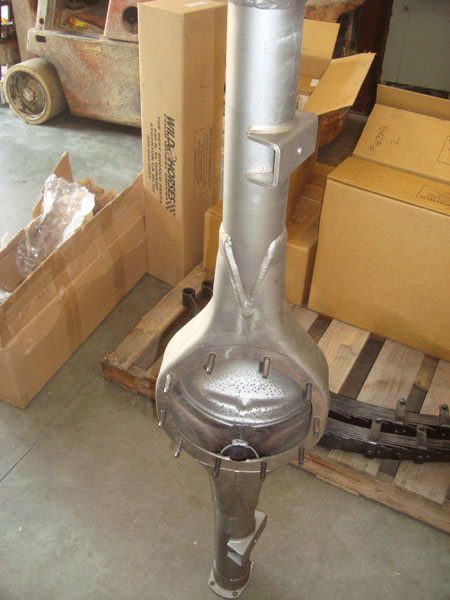

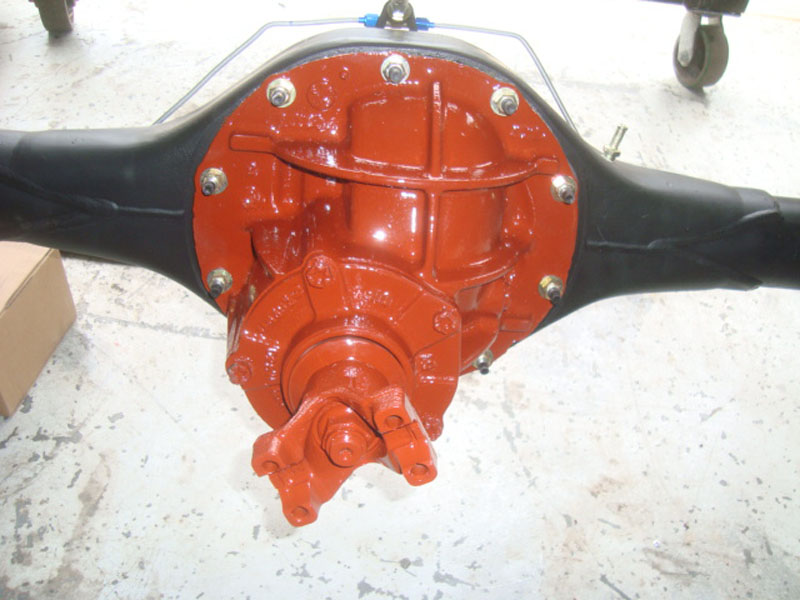

  • HD Currie rear axle package

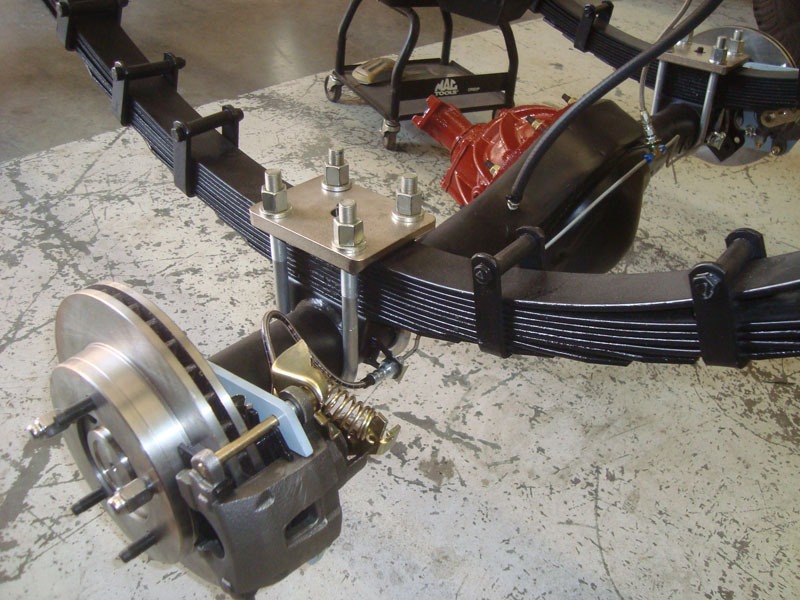

  • 4 wheel disc brakes with hydroboost
  • HD extended drive shafts by Carolina Powertrain

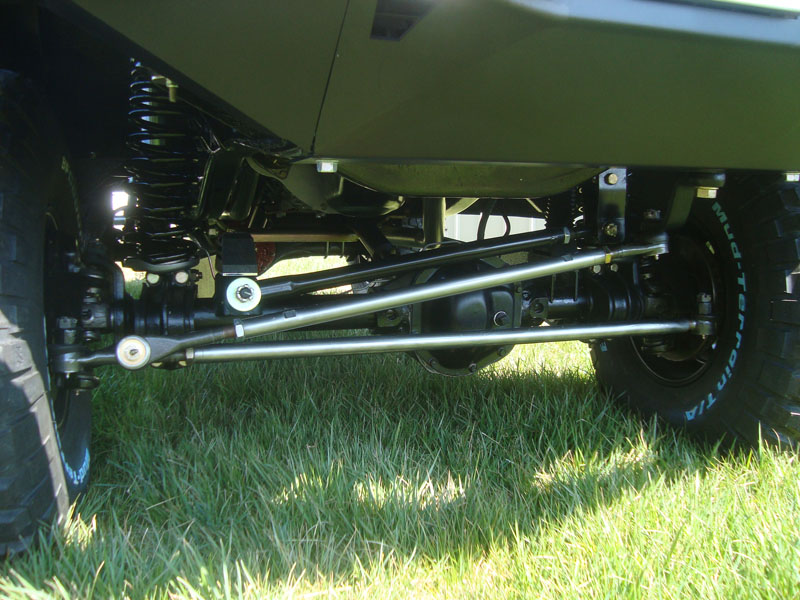

  • HD custom steering linkage
  • Moog Ball joints & tie rod ends

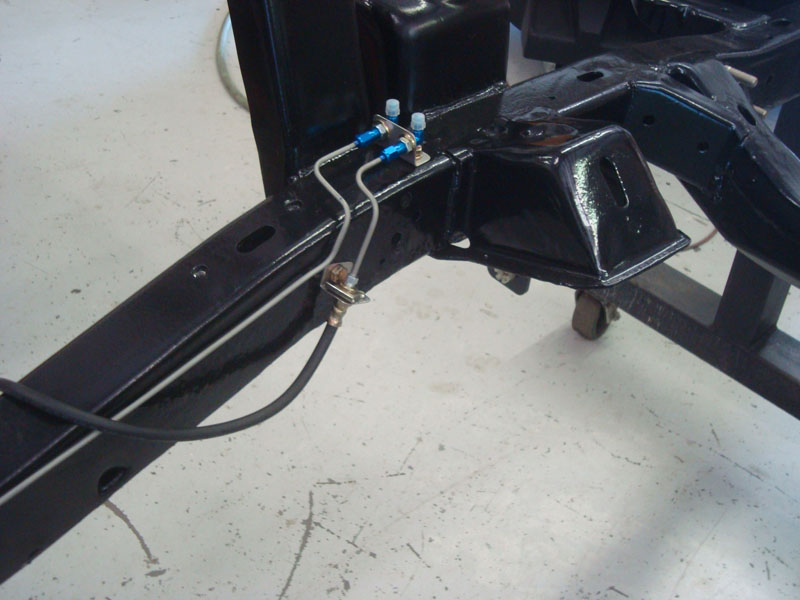

  • Fluid transfer with Goodridge hose & fittings
  • 23 gallon fuel tank
  • High efficiency radiator

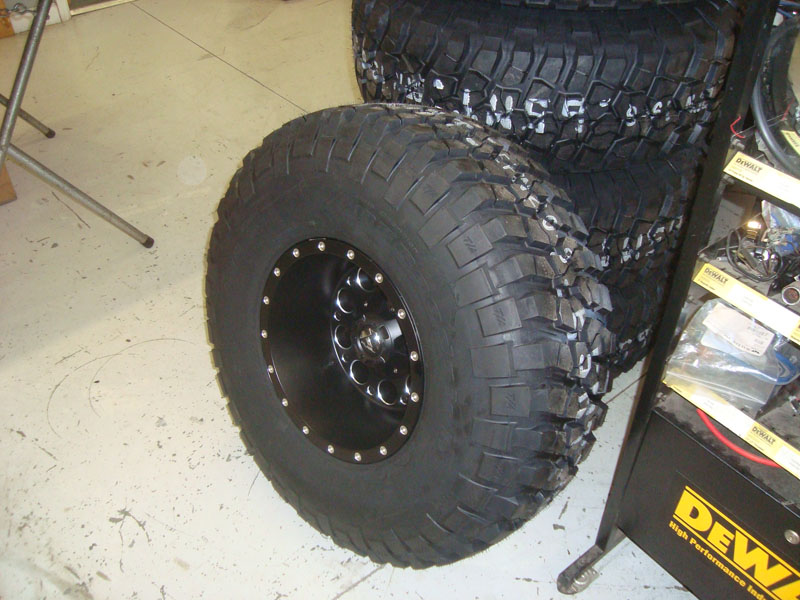

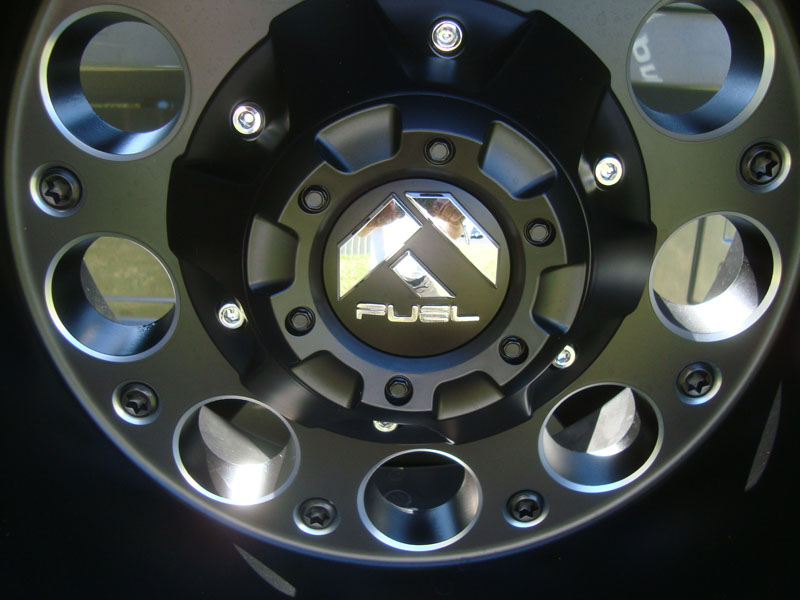

  • 10x15 Fuel alum wheels
  • 35 inch BF Goodrich KM2 Mud Terrain Tires

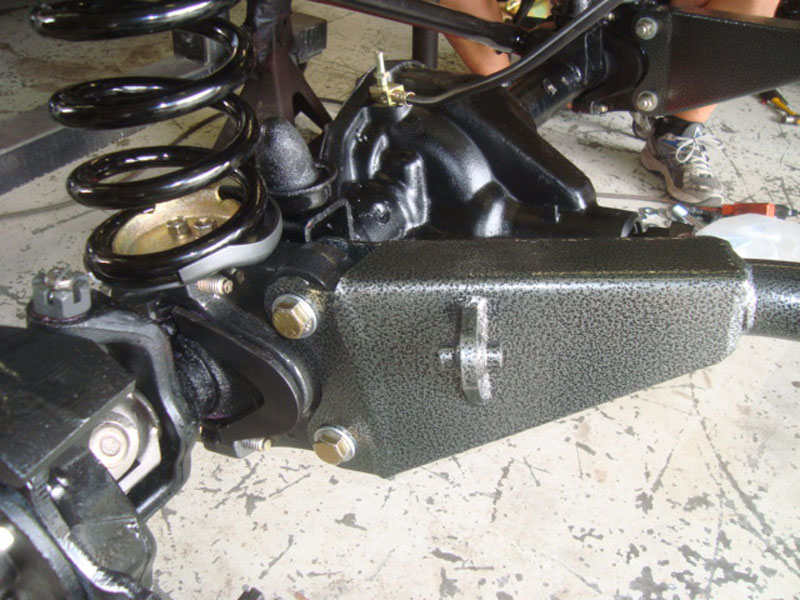

Suspension

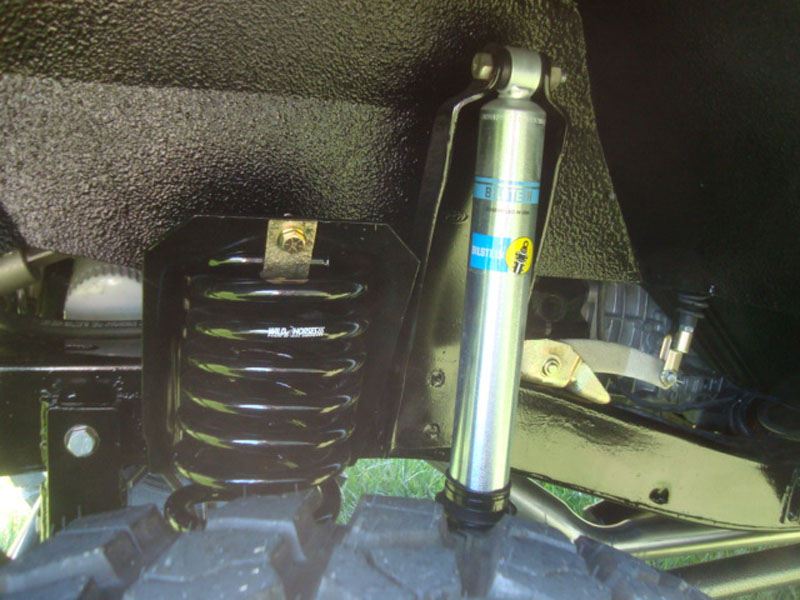

  • 3.5 inch lift using Wild Horses springs

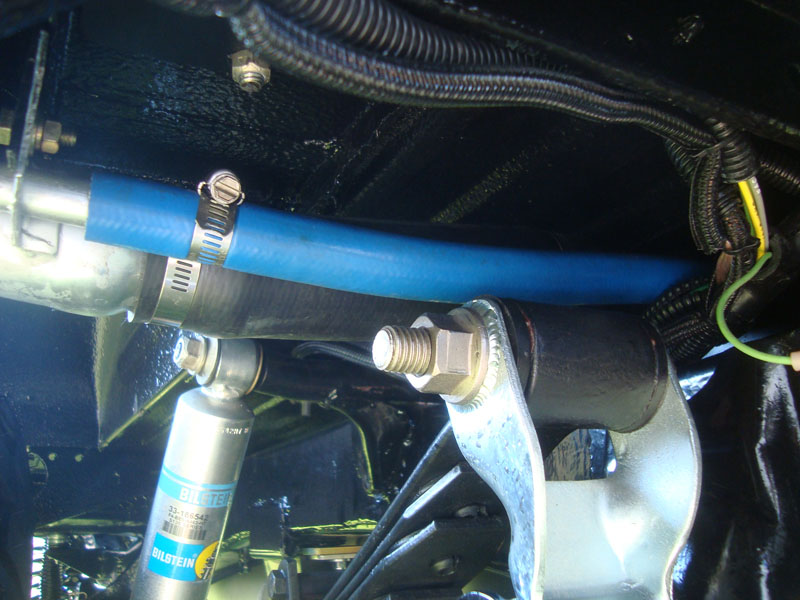

  • Bilstein shocks

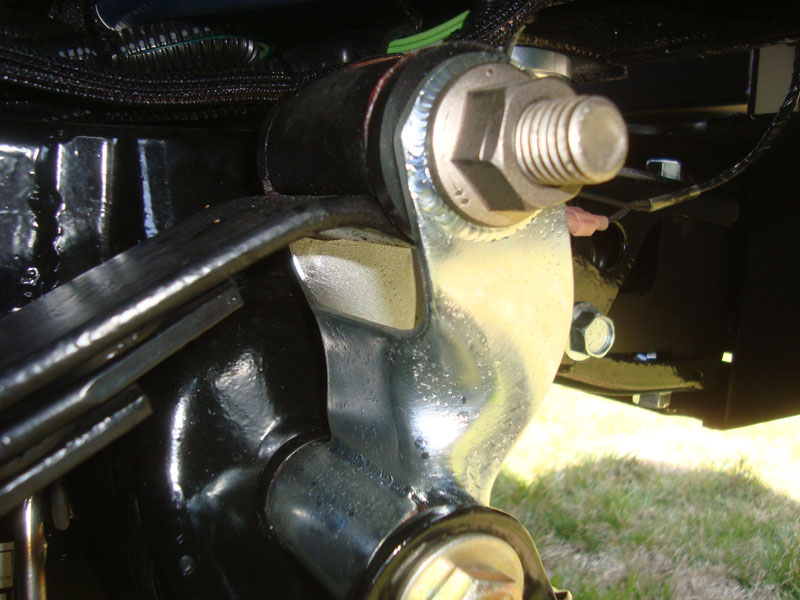

  • HD front shock mounts
  • Urethane bushings throughout
  • NT 1 inch billet body lift
  • Duff long arms in silver vein powdercoat

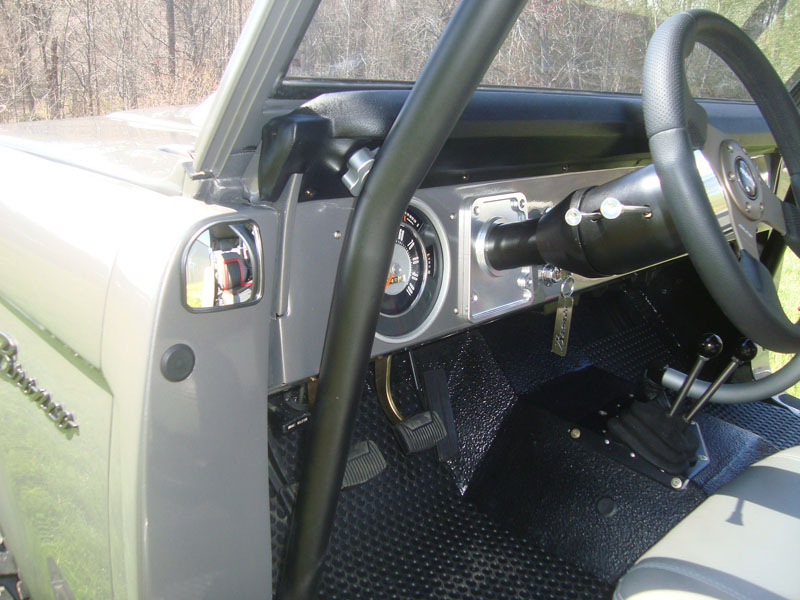

Interior

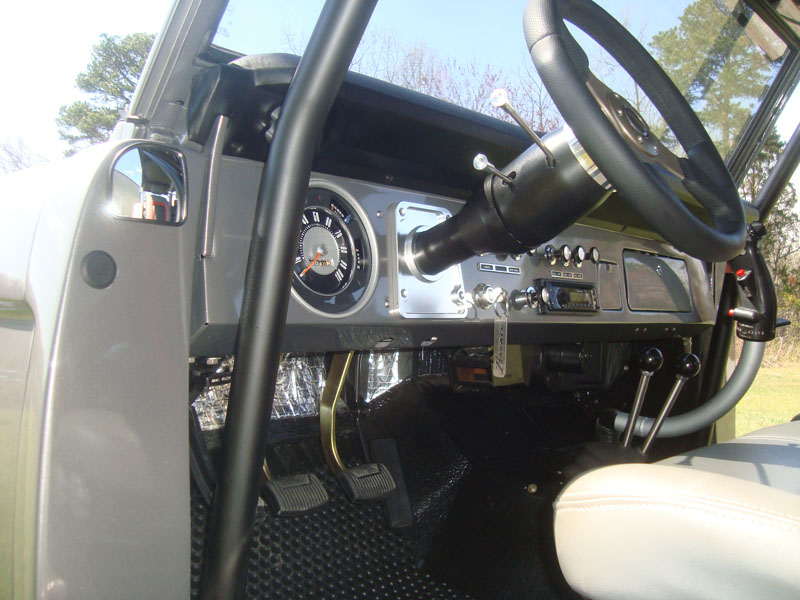

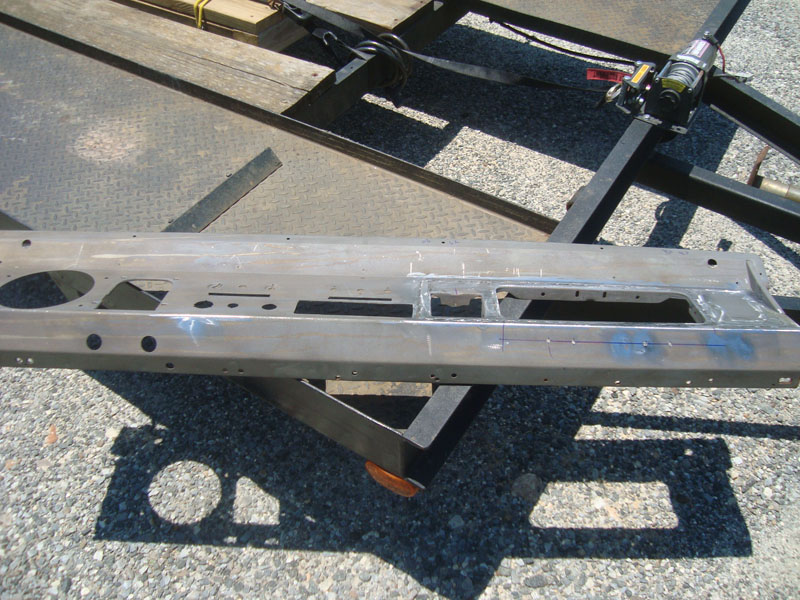

  • Custom dash layout with NT billet components

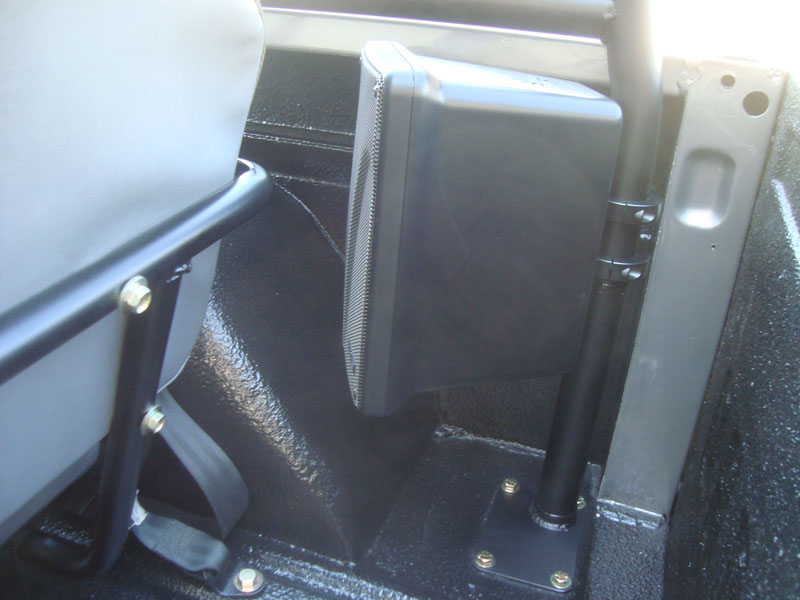

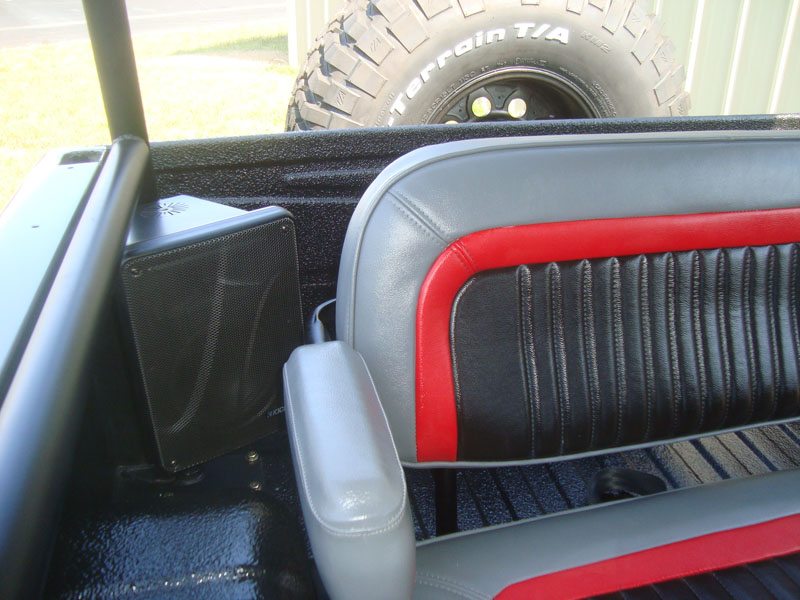

  • Pioneer stereo package with Kicker speakers
  • Painless wiring harness
  • Tilt column with Momo steering wheel
  • NT family cage package

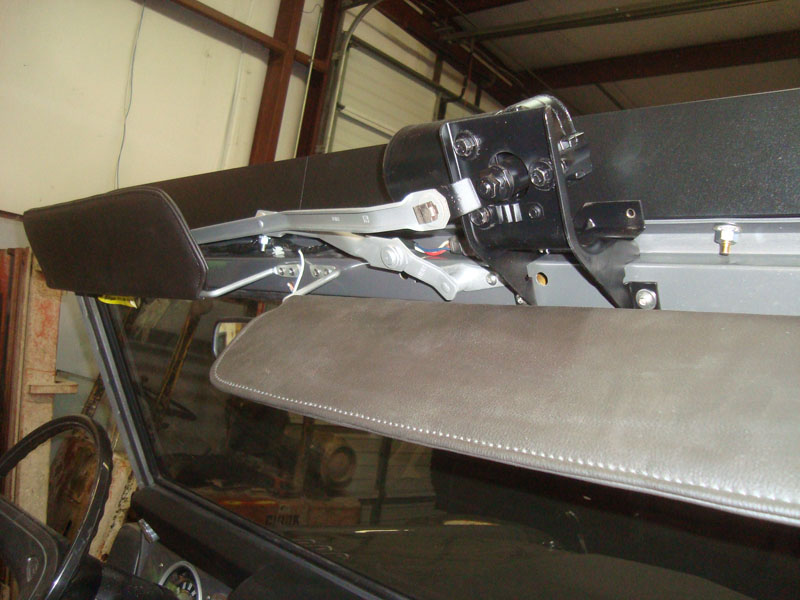

  • Electric wiper package

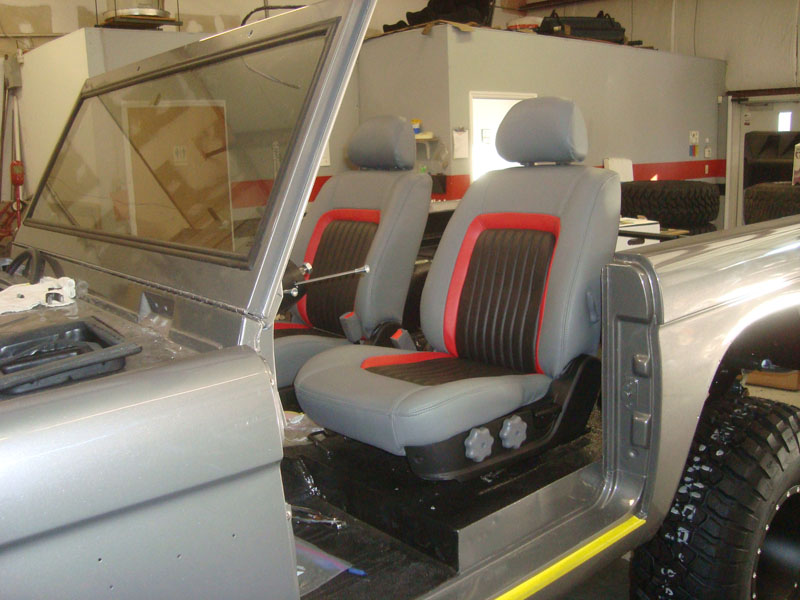

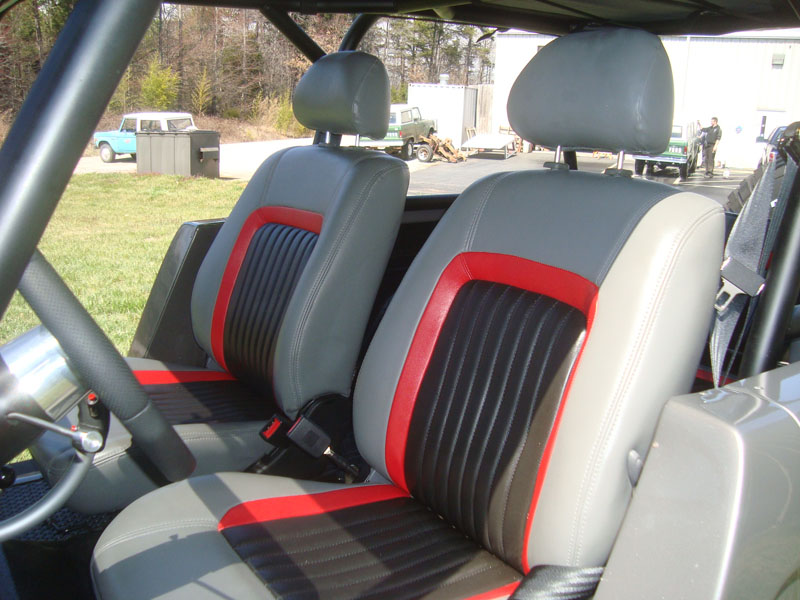

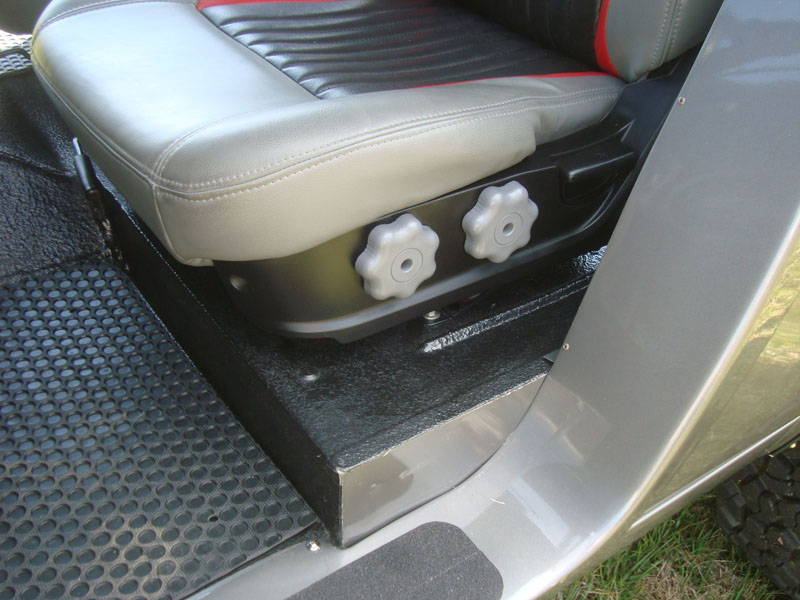

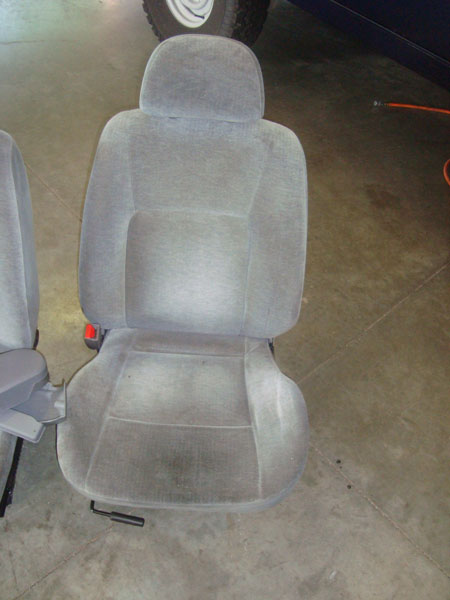

  • Custom front seats
  • Upholstery by Pharr’s Auto Trim Shop
  • 3 point seat belts
Exterior

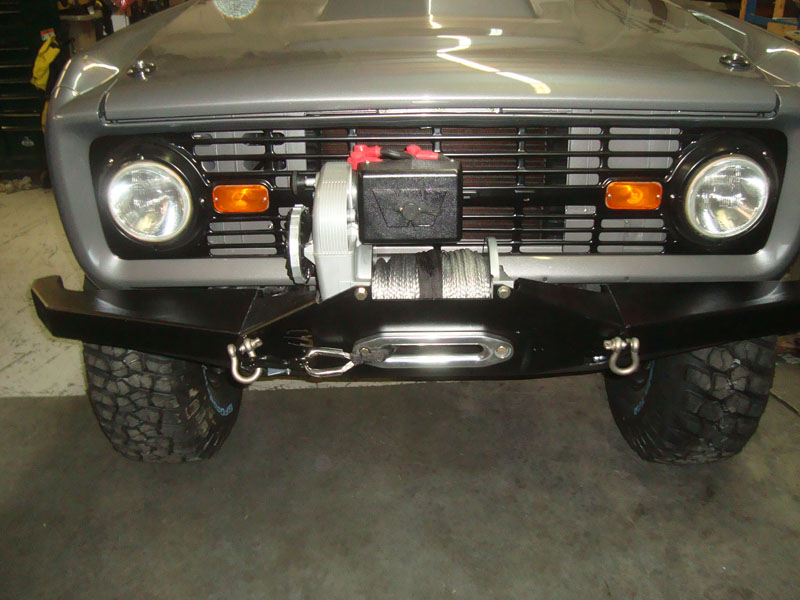

  • Bumpers by Bailie Bilt
  • Duff fender flares
  • Zinc plated components and hardware throughout

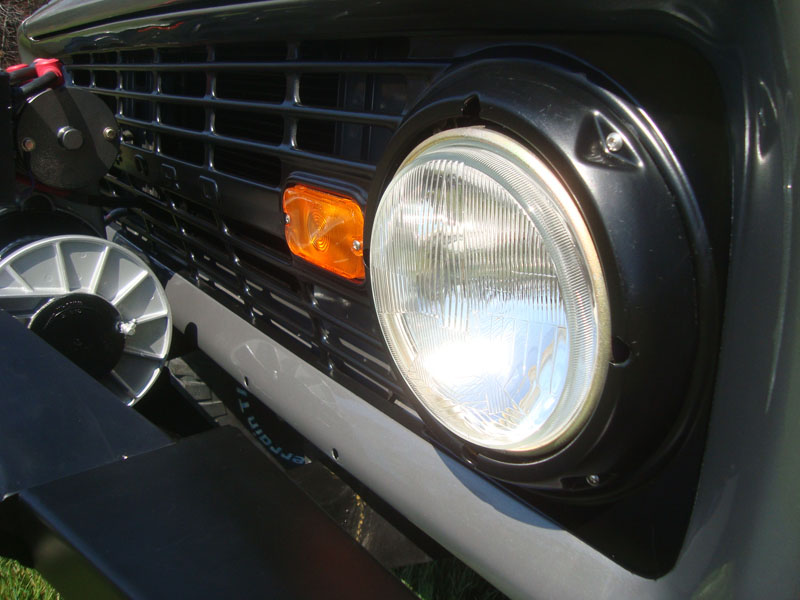

  • H4 european style headlights

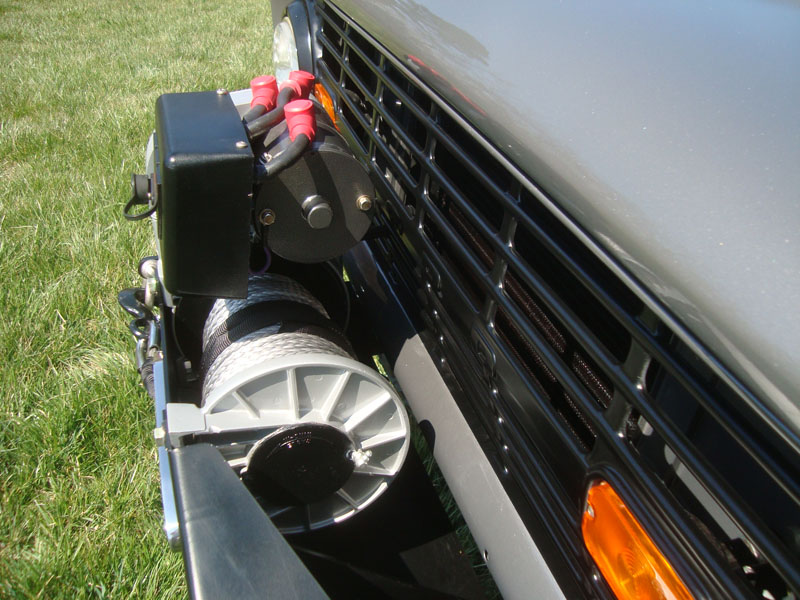

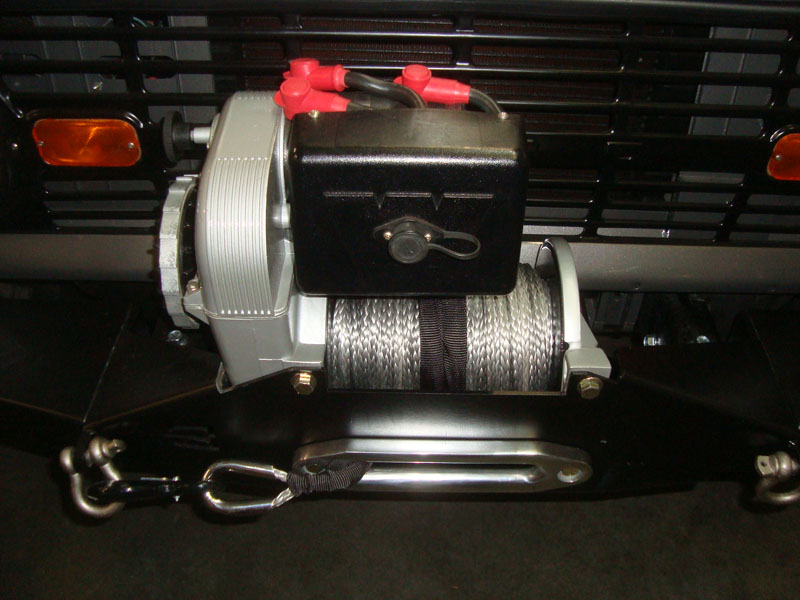

  • Warn 8274 Winch with synthetic line

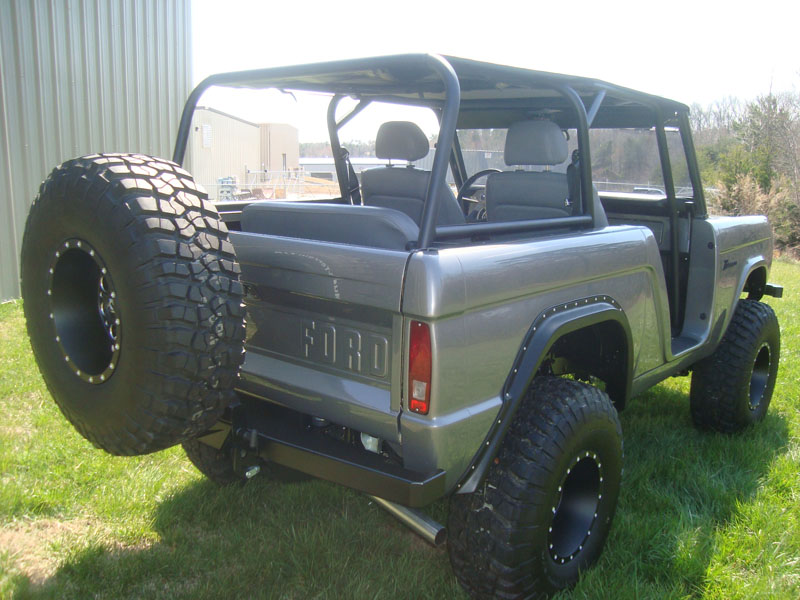

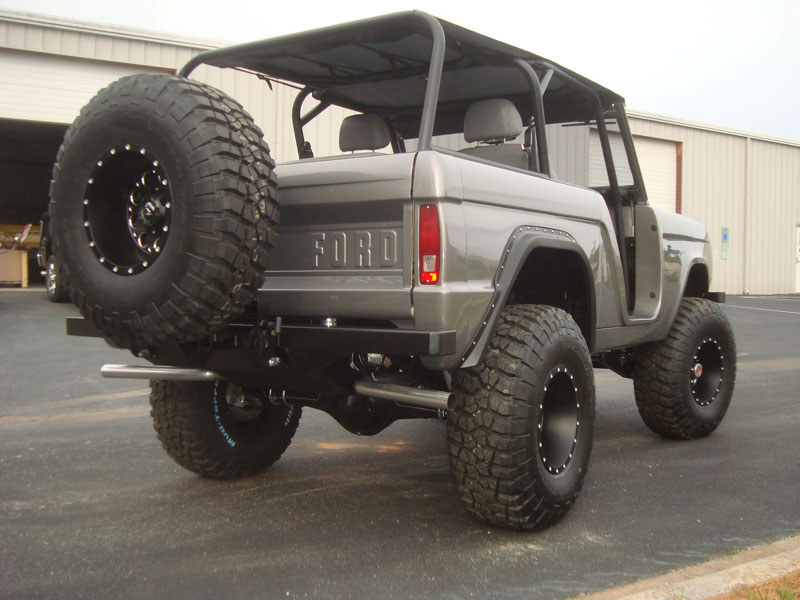

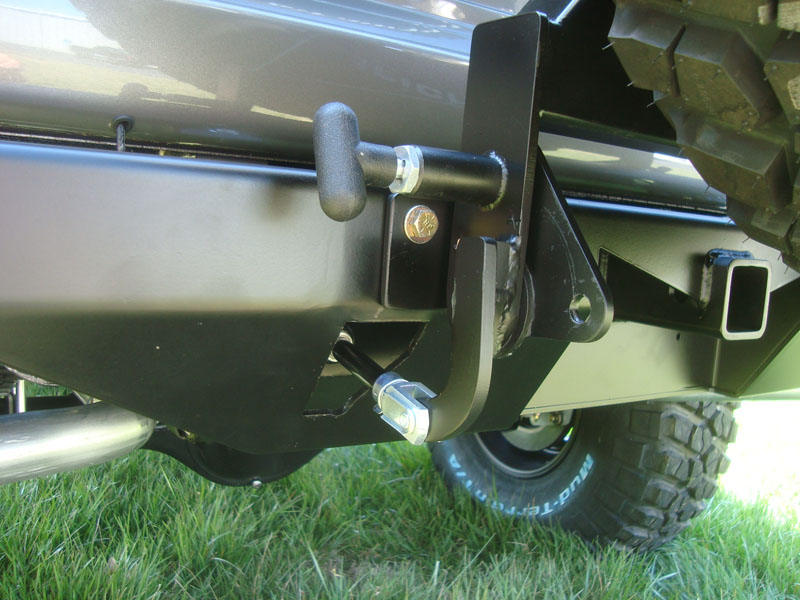

  • NT custom tire carrier with lift assist

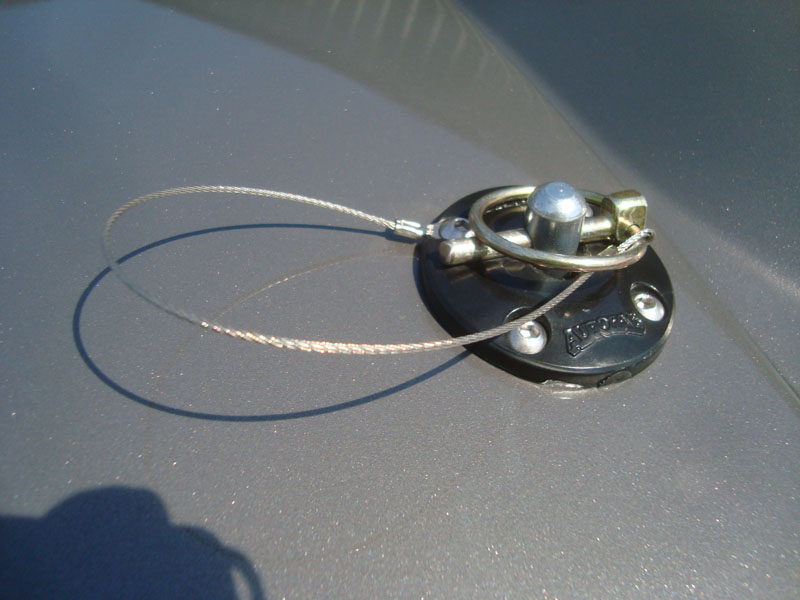

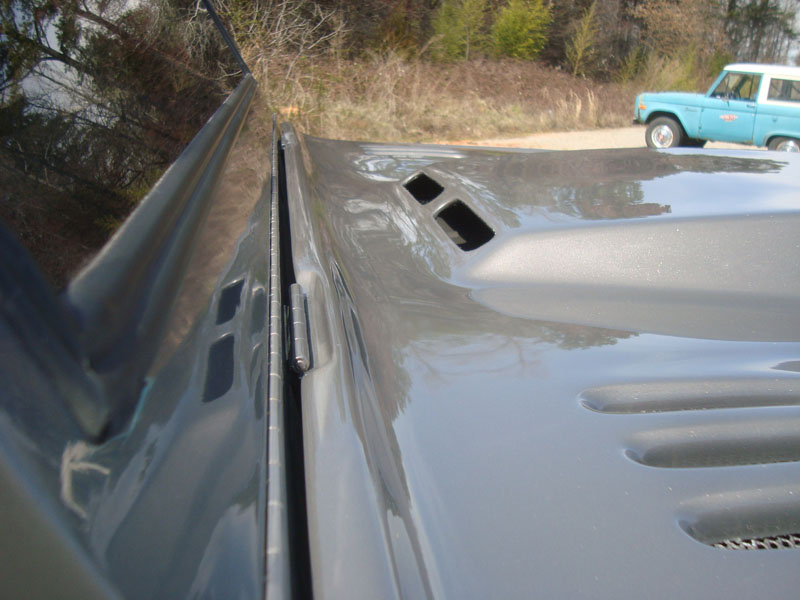

  • Glass hood
  • WH safari top
  • NT tinted windshield
