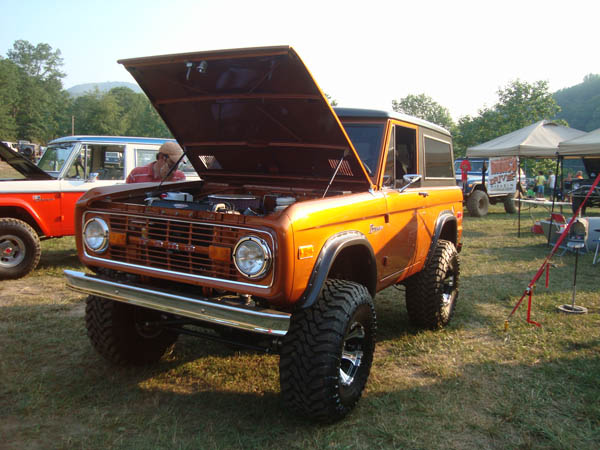

Atlanta Build by Nick's TrixBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

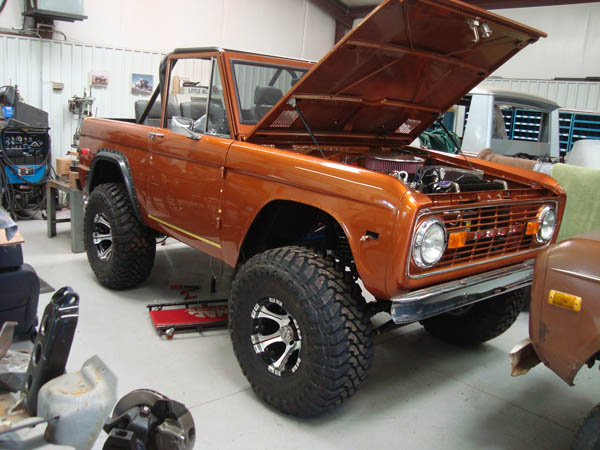

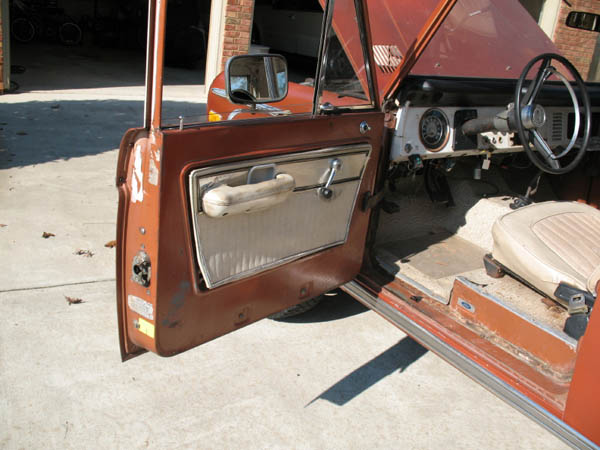

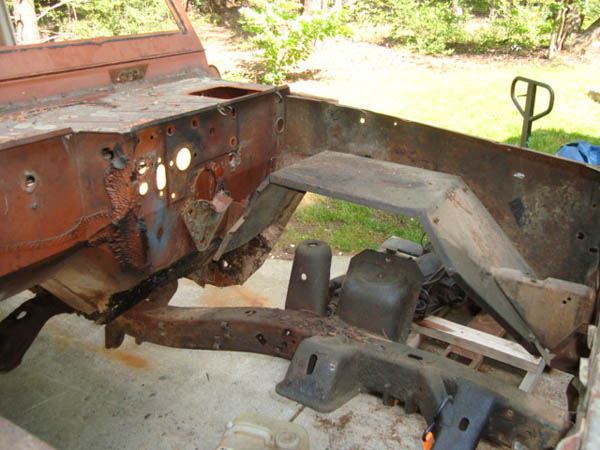

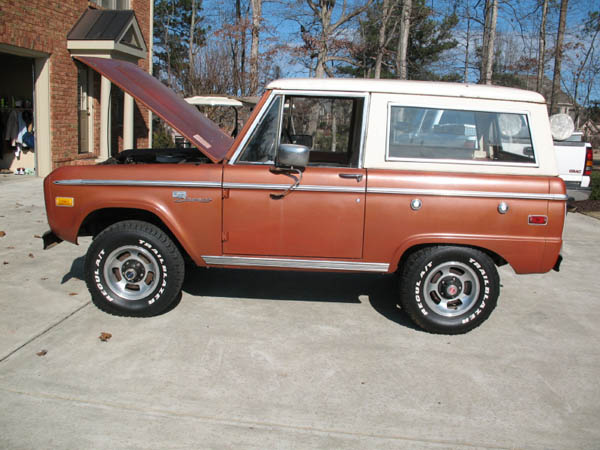

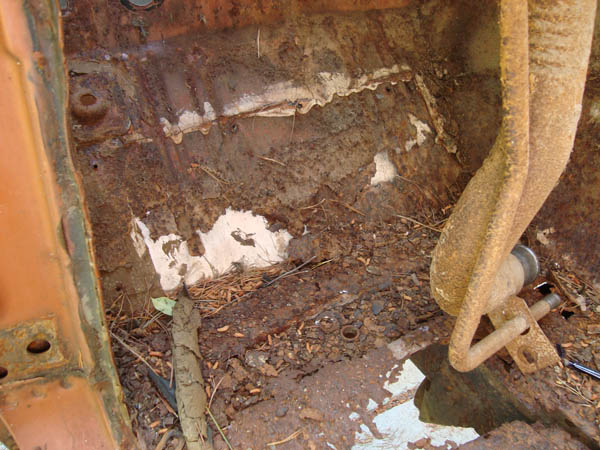

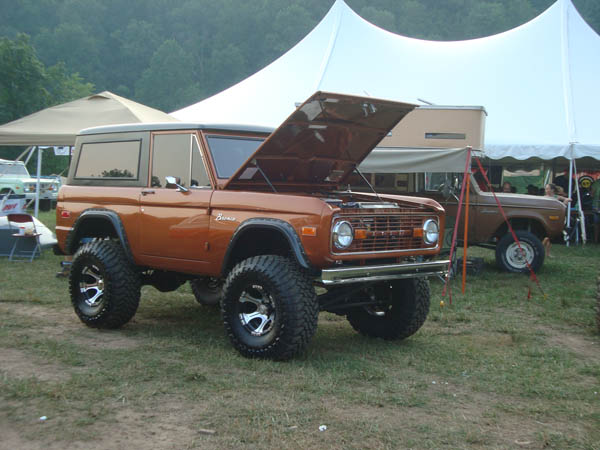

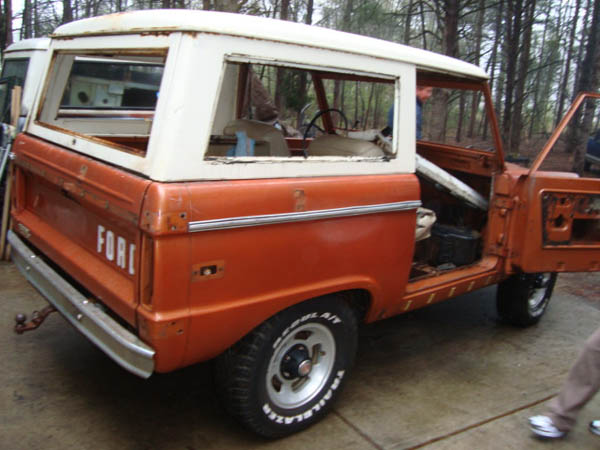

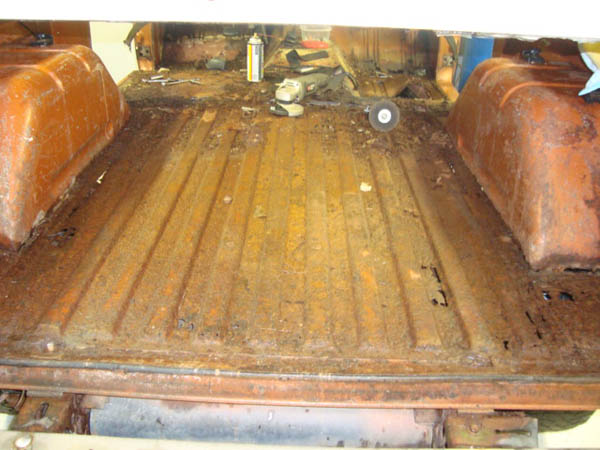

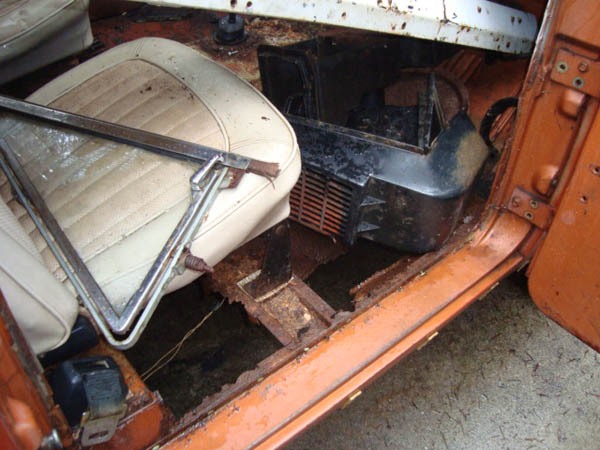

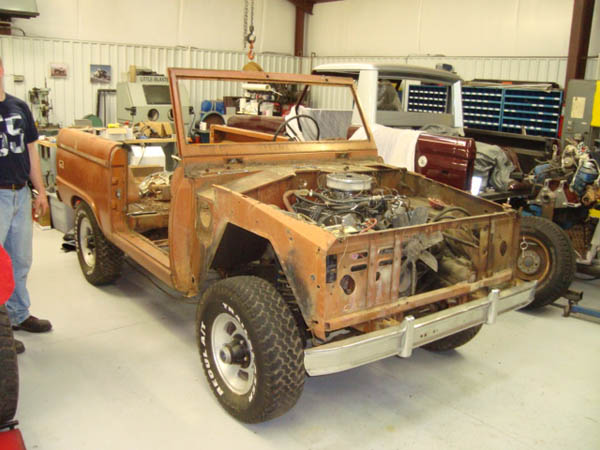

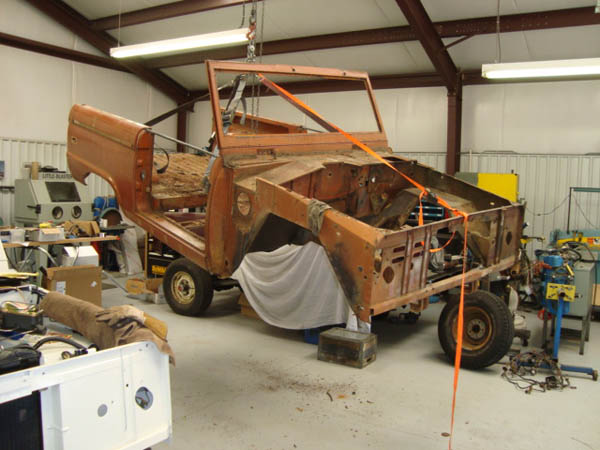

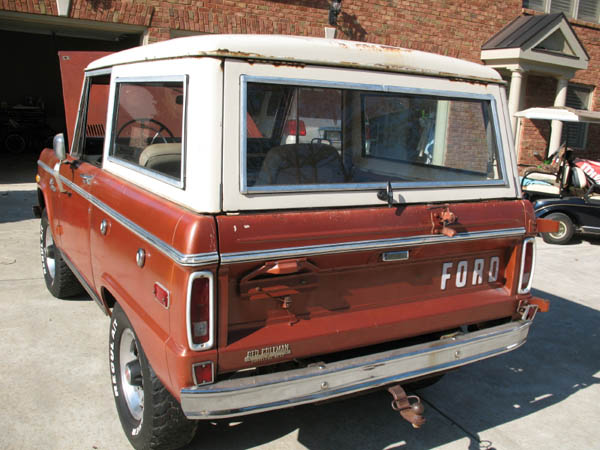

This was an eBay special. Once the owner received the truck he realized it was more than he could handle.
“Who ya gonna call…"

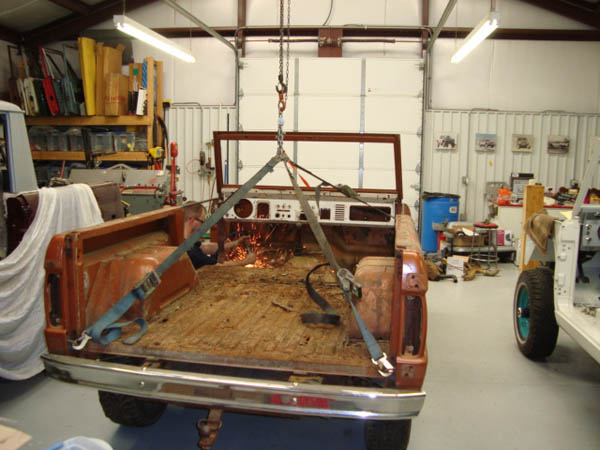

It was brought to Nick’s Trix to be completely redone.

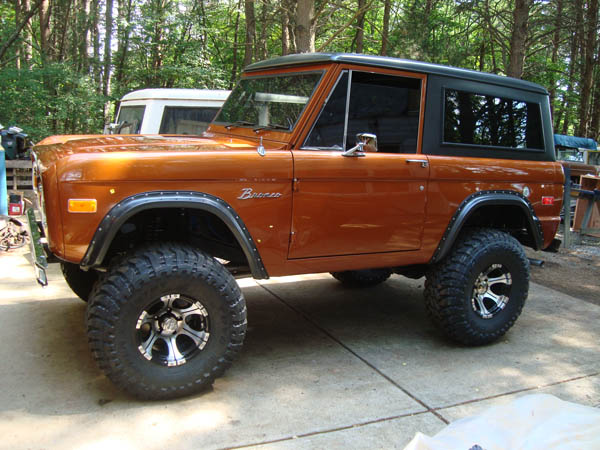

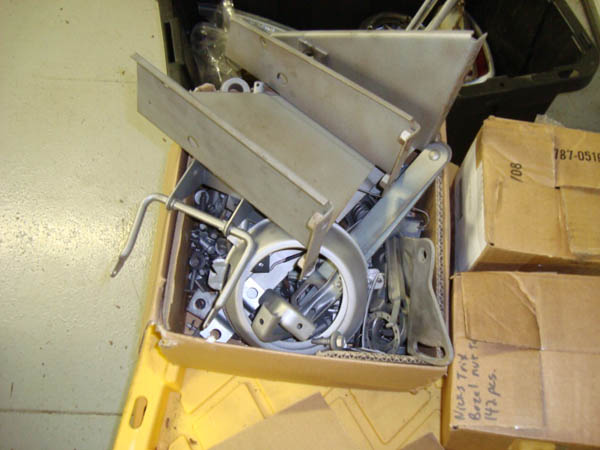

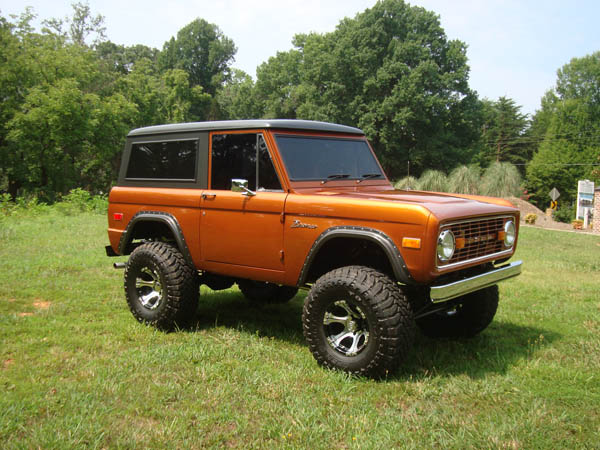

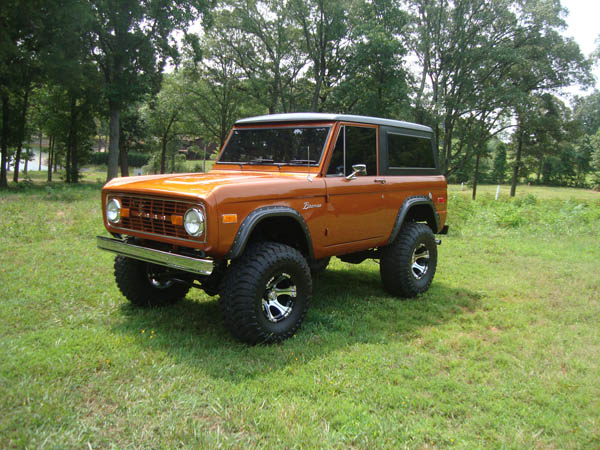

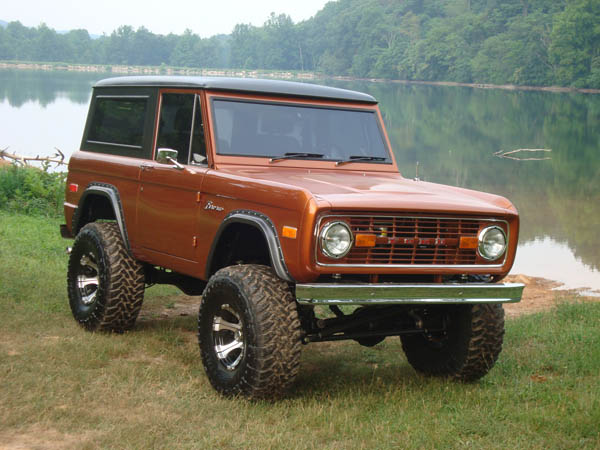

Every part on this truck has been gone through. Be it replaced, refinished or replated. It is a essentially a new hand built 2010 model truck.

 Bronco Build Photo Gallery
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
1 2 3
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
1 2 3
a b c
a b c
1 2 3
a b b
a b c
1 2 3
a b c
a b c
1 2 3
a b c
a b c
1 2 3
a b c
a   b

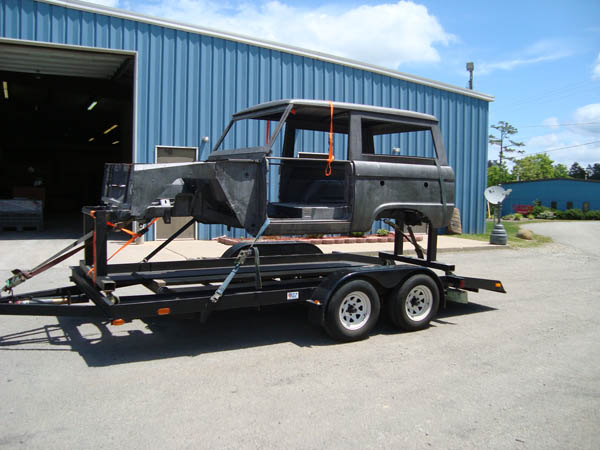

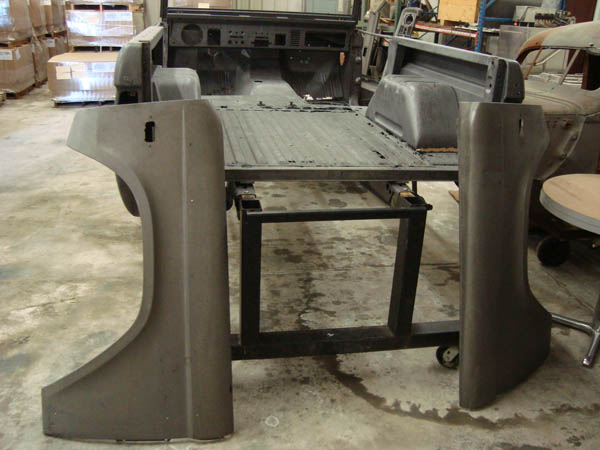

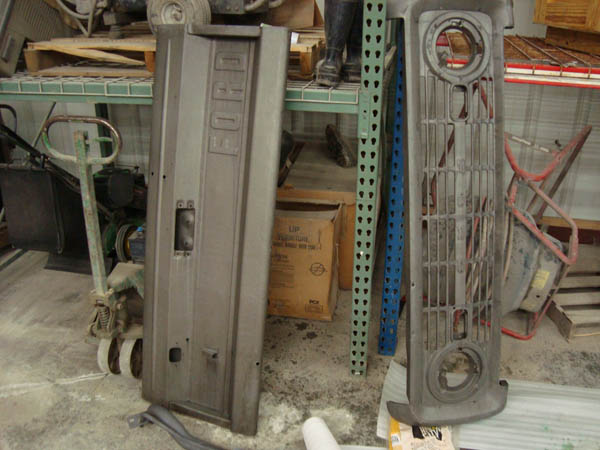

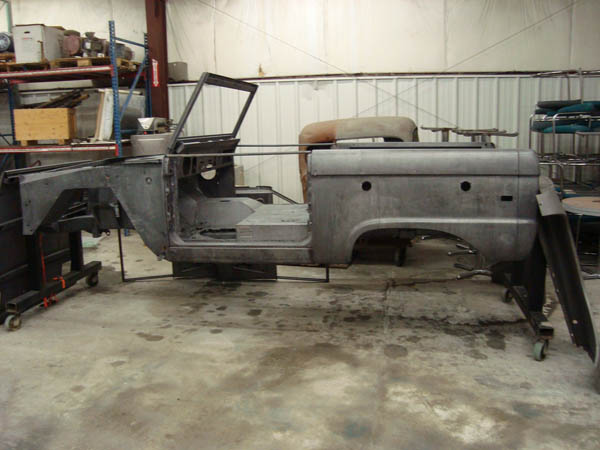

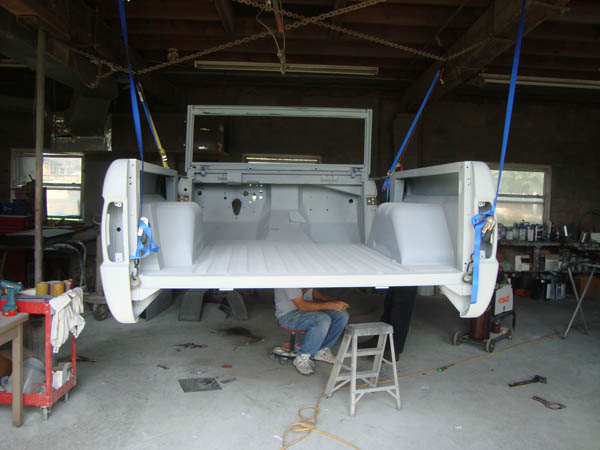

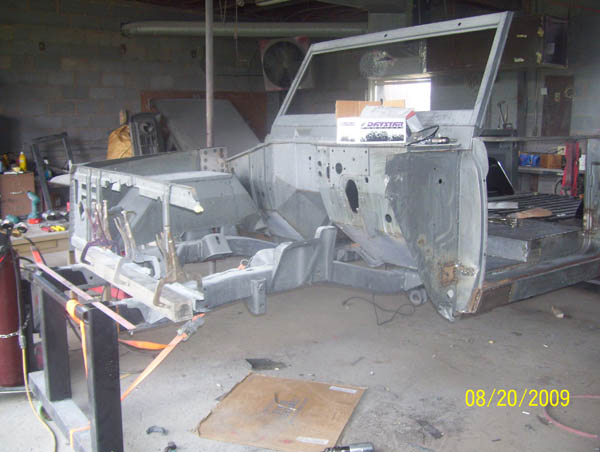

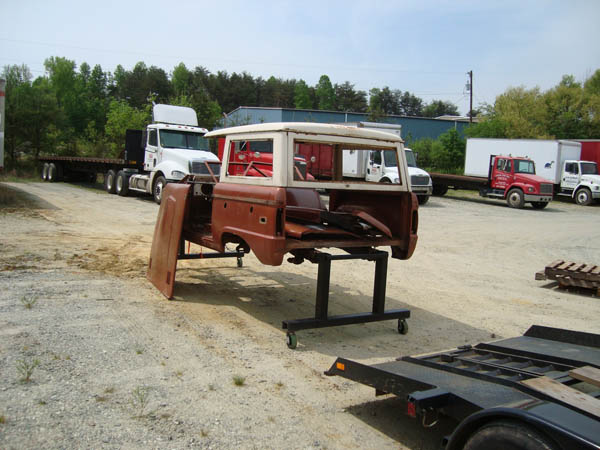

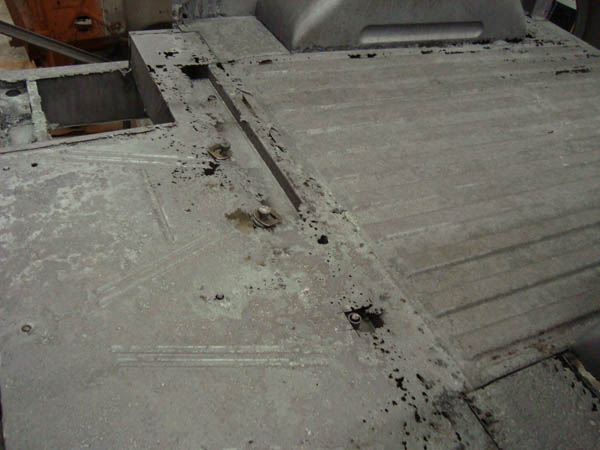

  • Complete chemical strip by Carolina Chem Strip

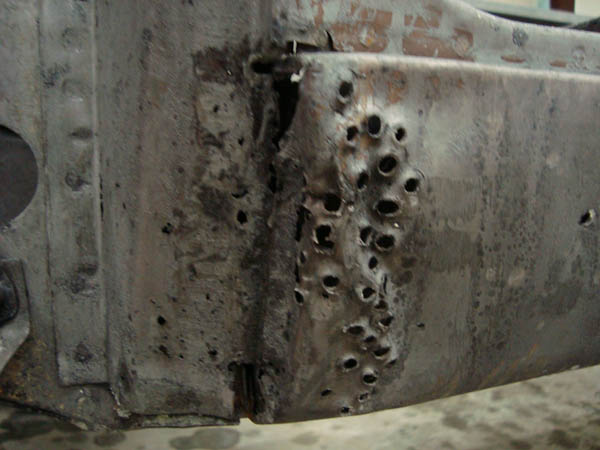

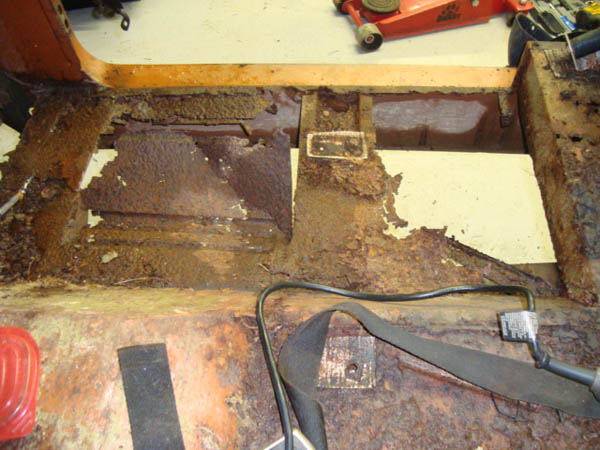

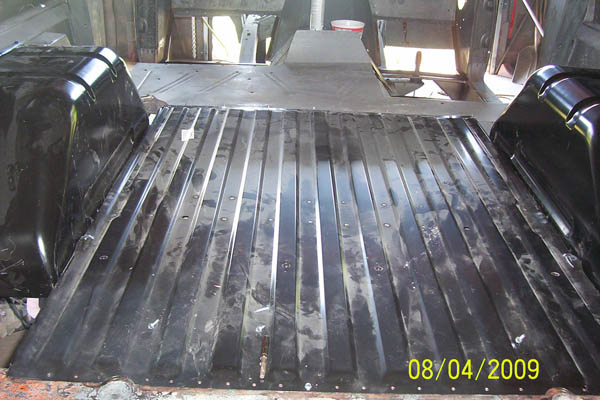

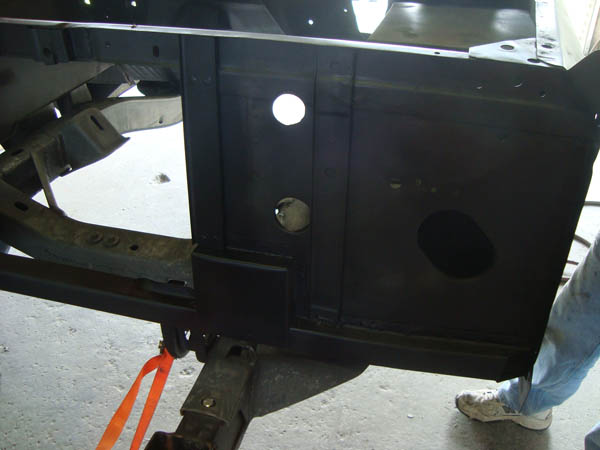

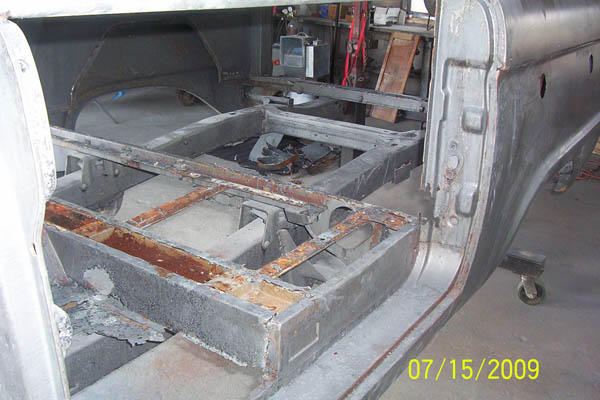

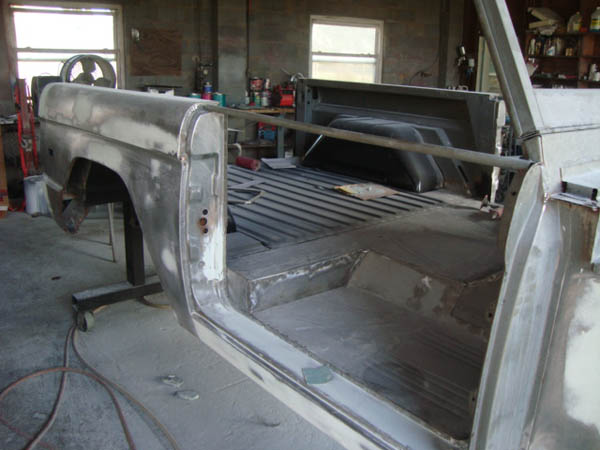

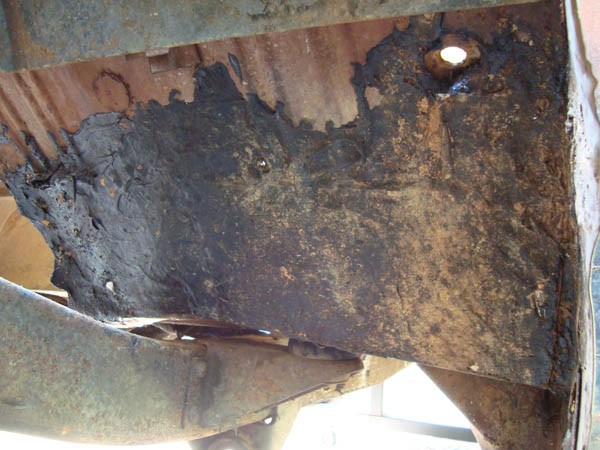

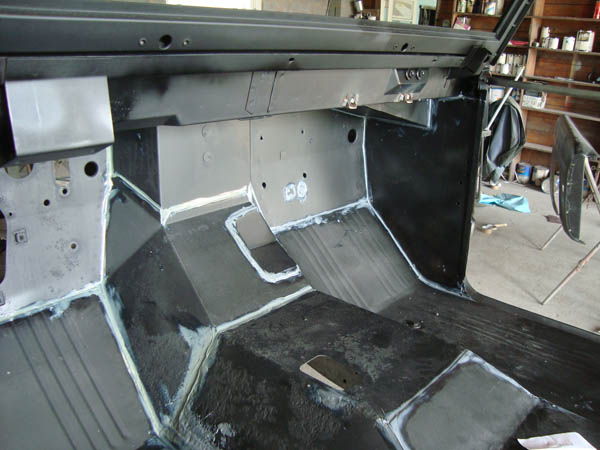

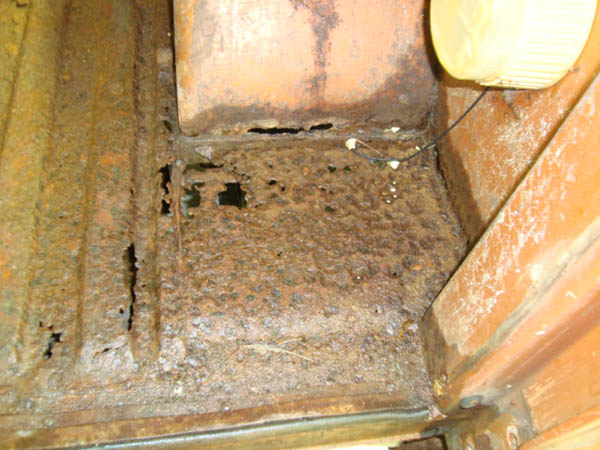

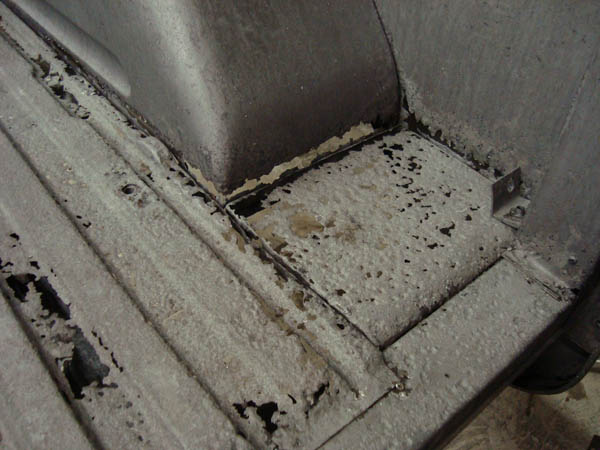

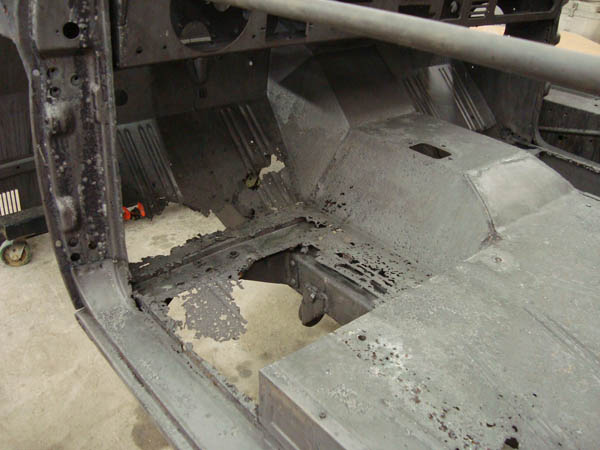

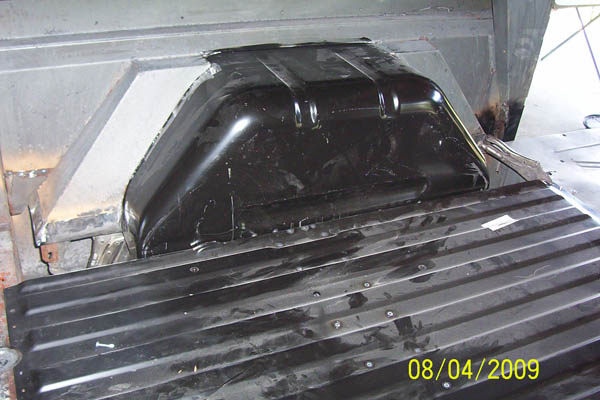

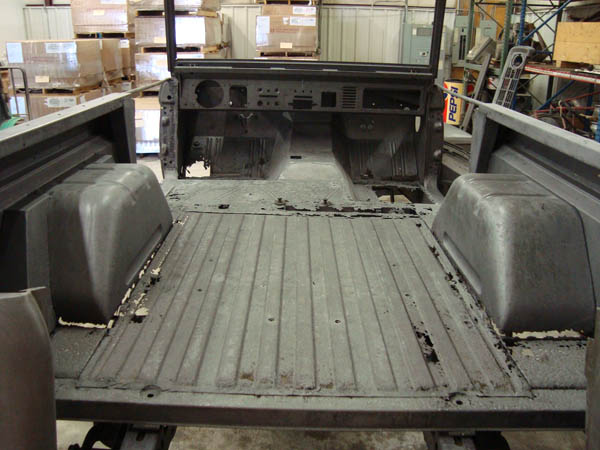

  • New floors front to back

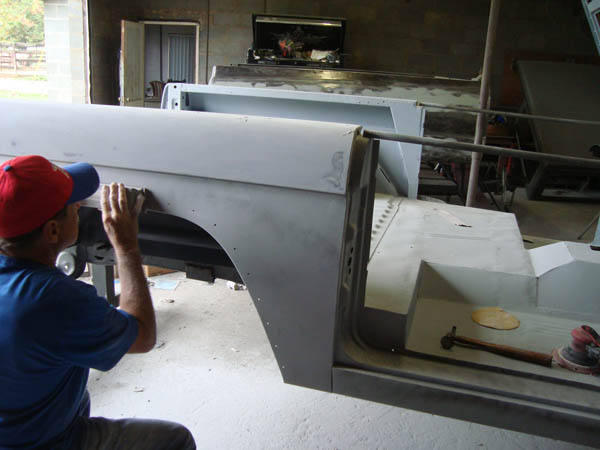

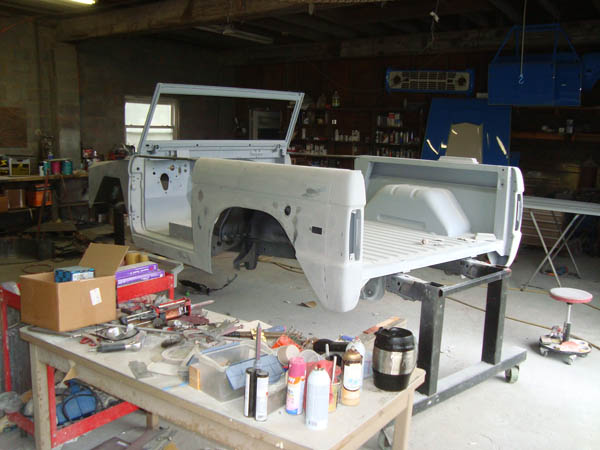

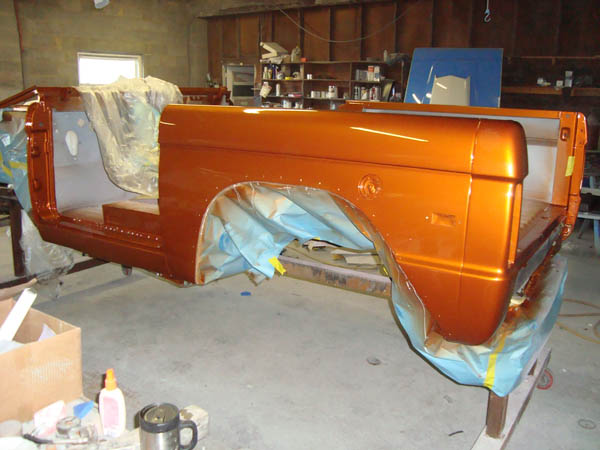

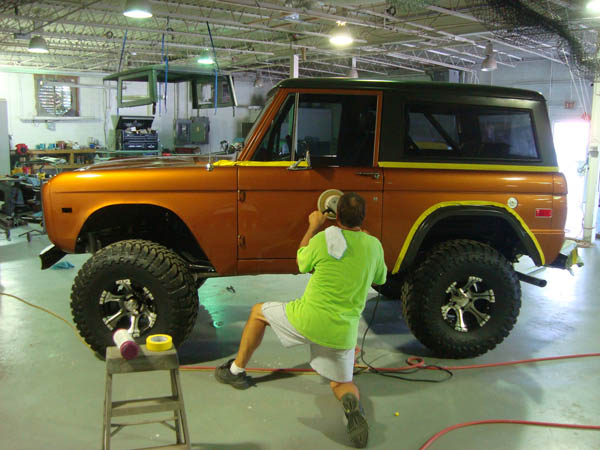

  • Body & paint by Chuck Schenck Autobody
  • All paint products: PPG
  • All sealers products: SEM

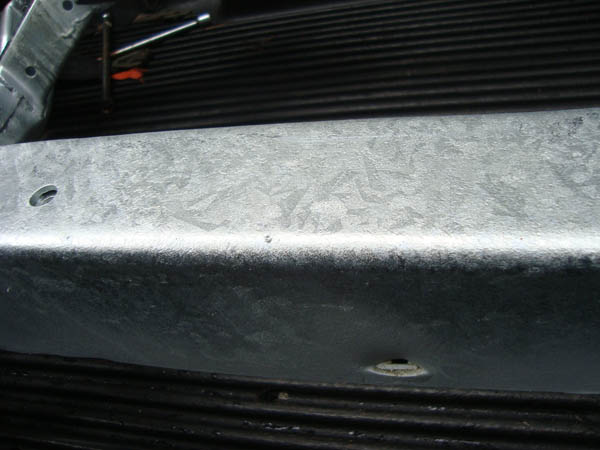

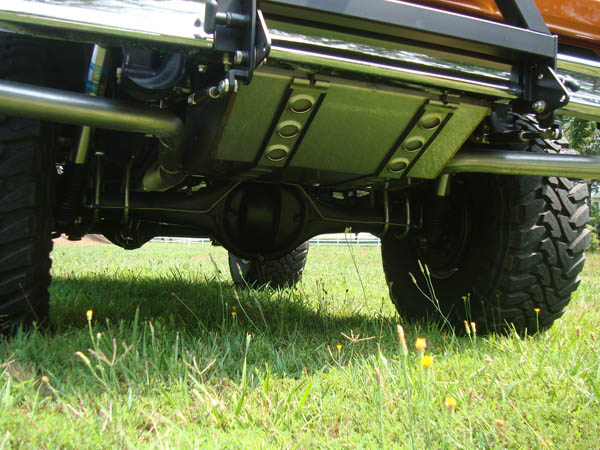

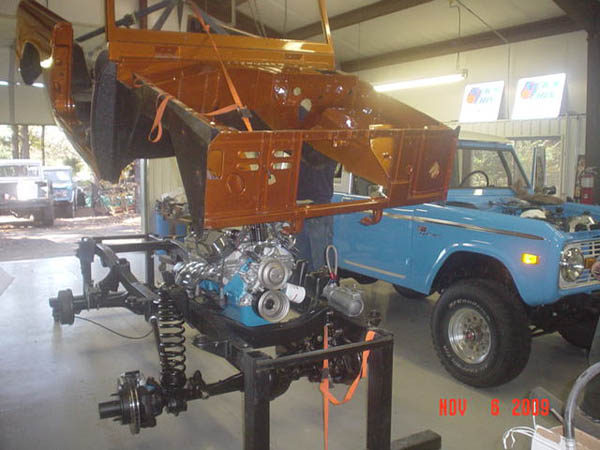

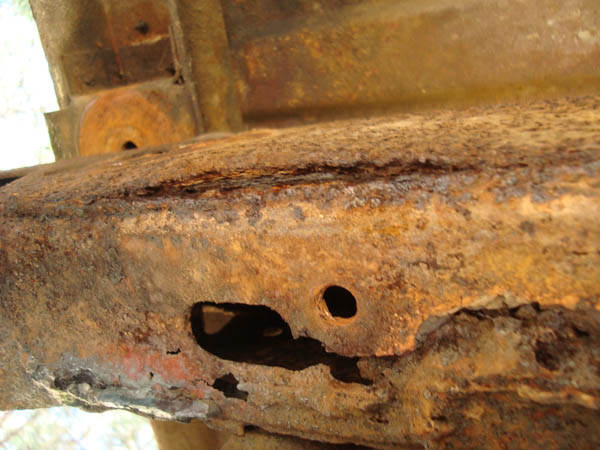

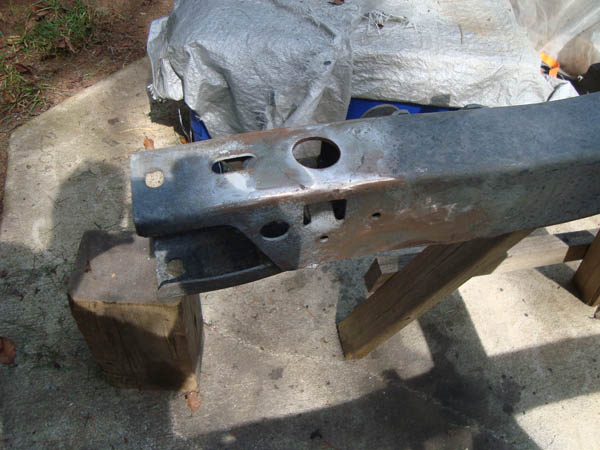

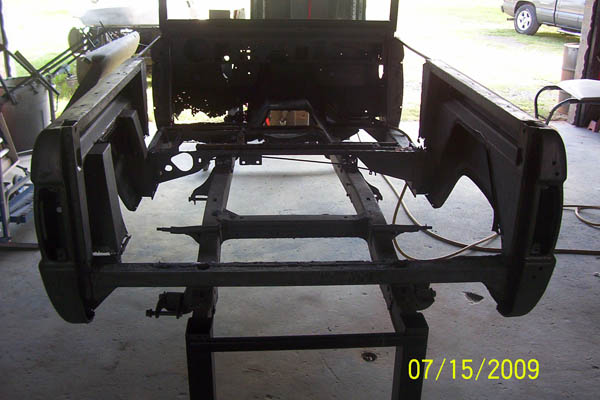

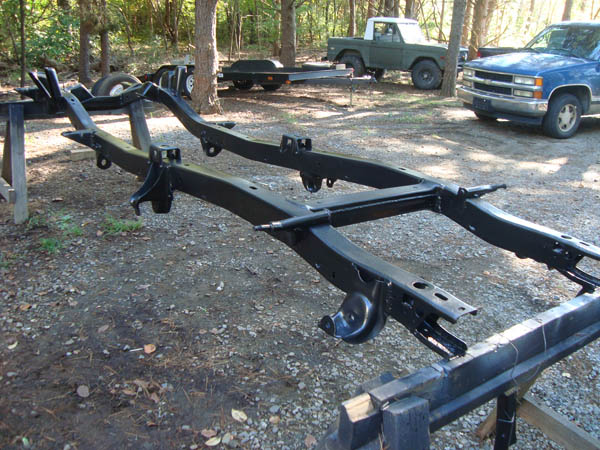

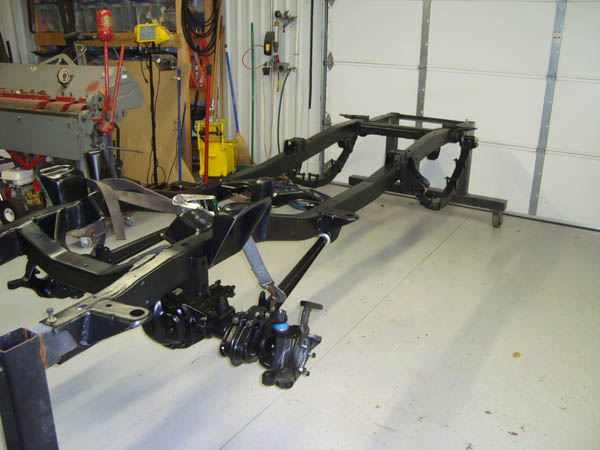

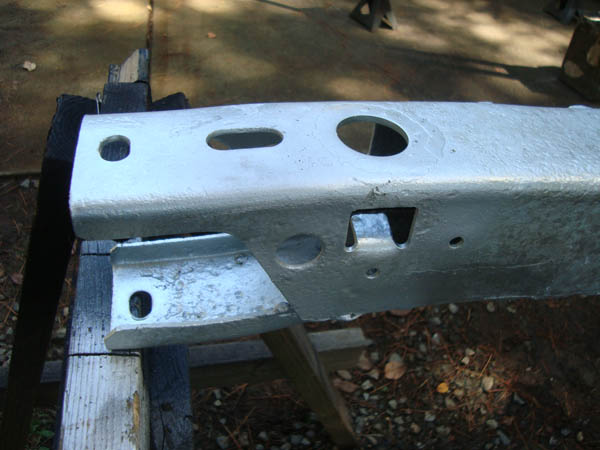

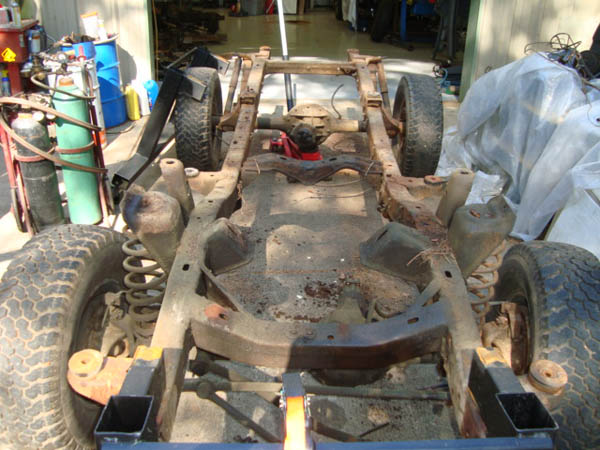

  • Chassis is hot dip galvanized by Galvan Industries

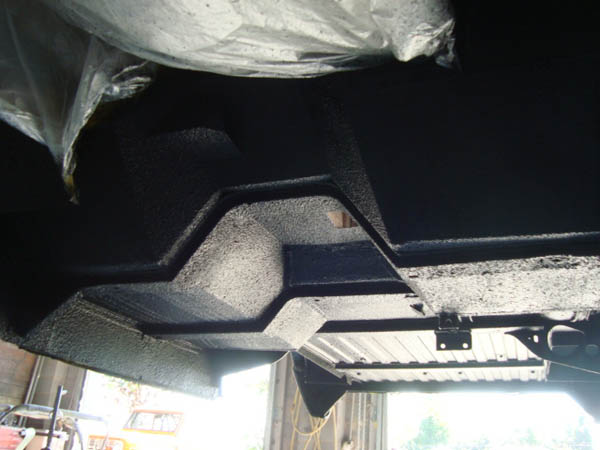

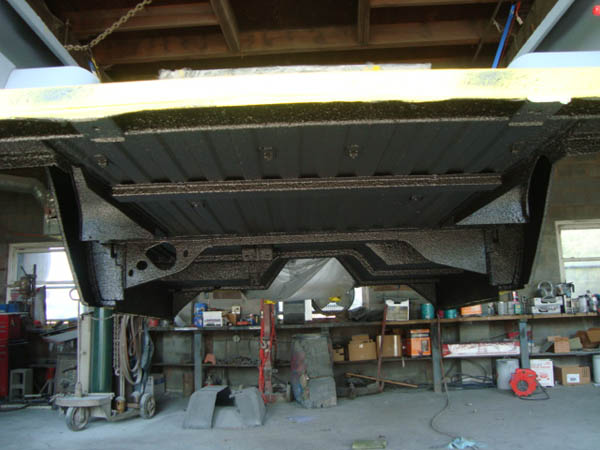

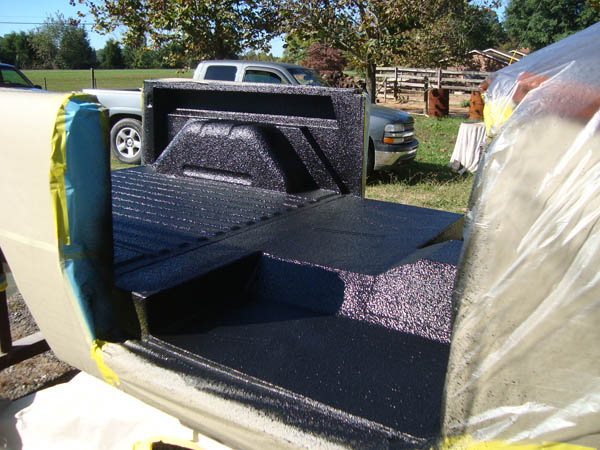

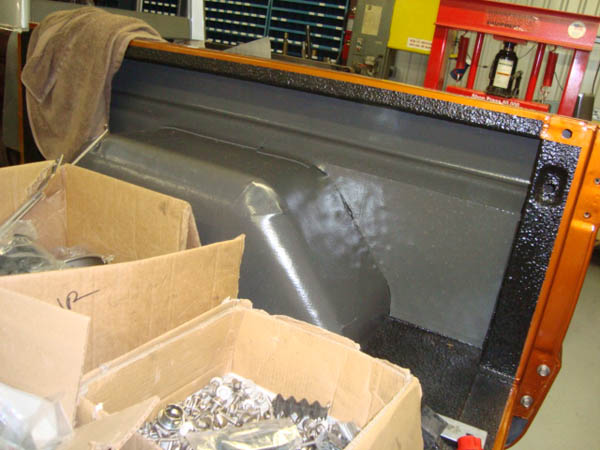

  • Spray in liner inside & under using Al’s Liner

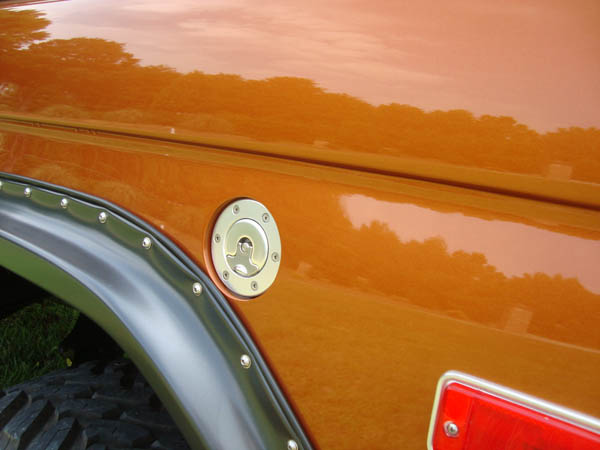

  • Duff urethane flares attached with stainless hardware
  • NT exclusive gas assist drop down tire carrier

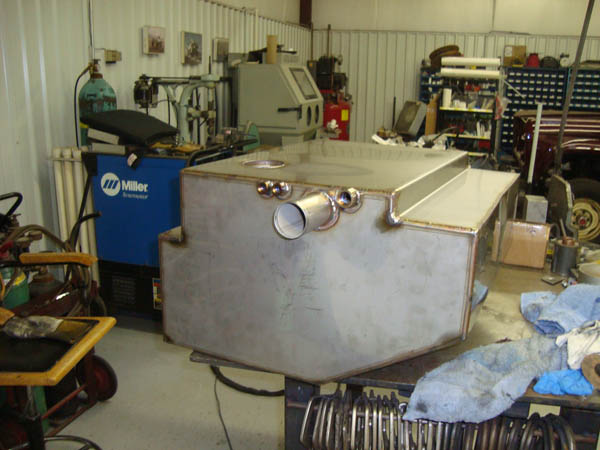

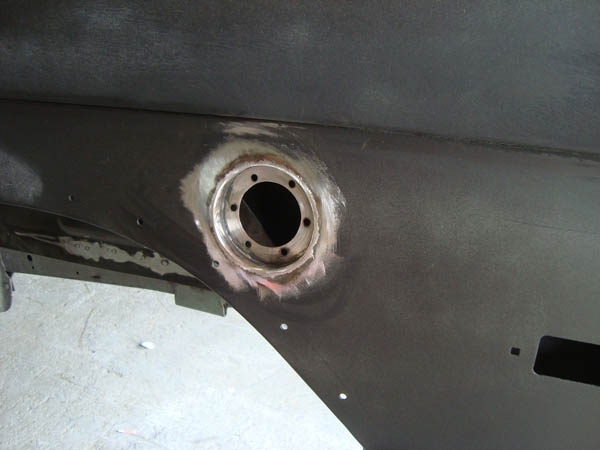

  • NT stainless fuel tank
  • New chrome bumpers
  • Hella H4 headlamps

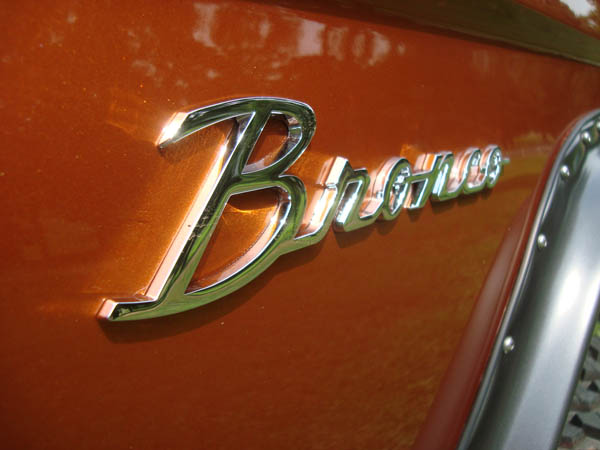

  • New brightwork
Drivetrain

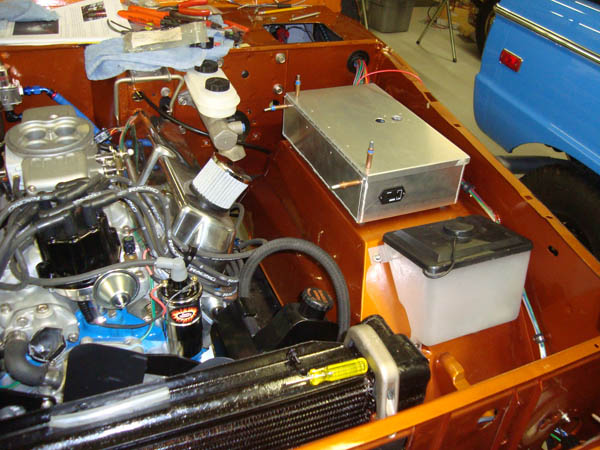

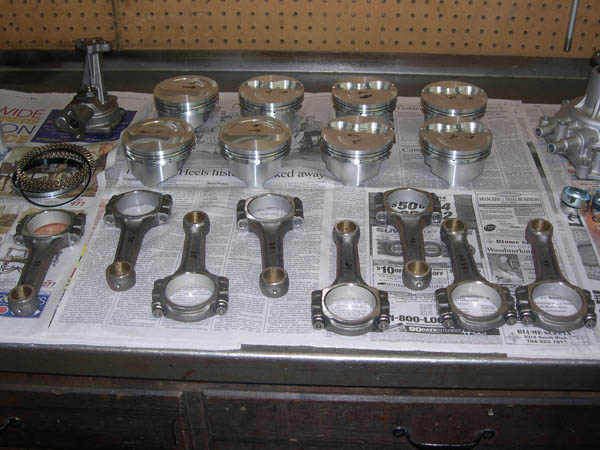

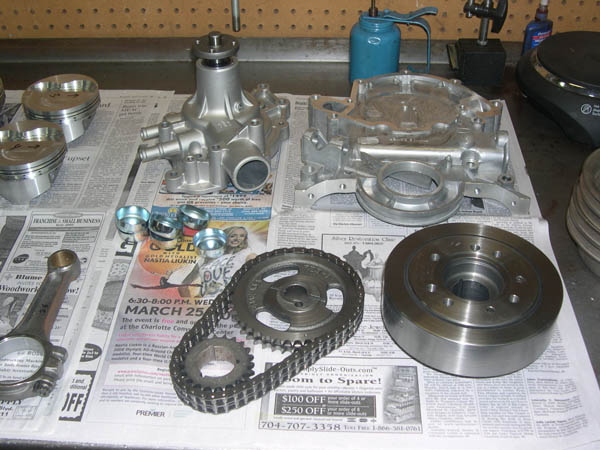

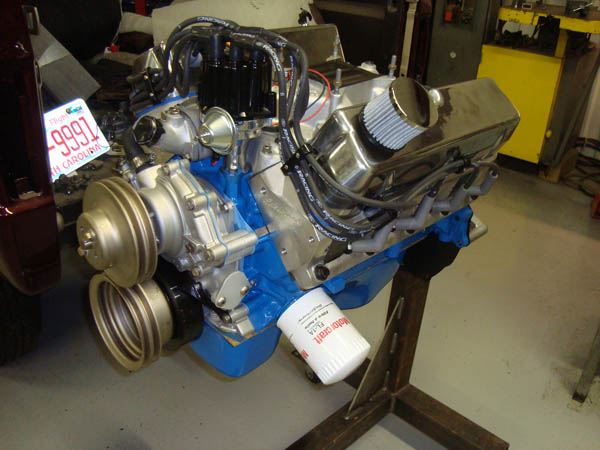

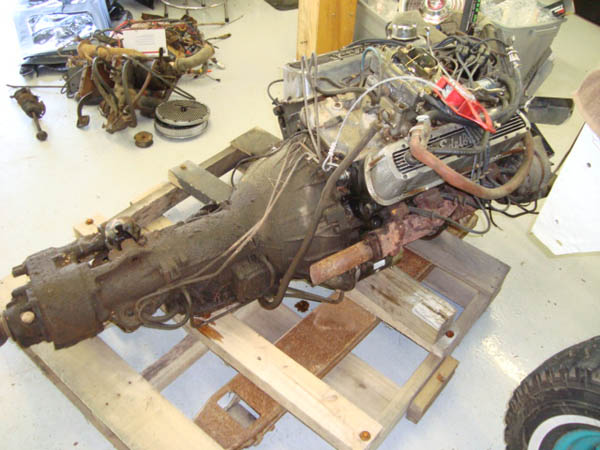

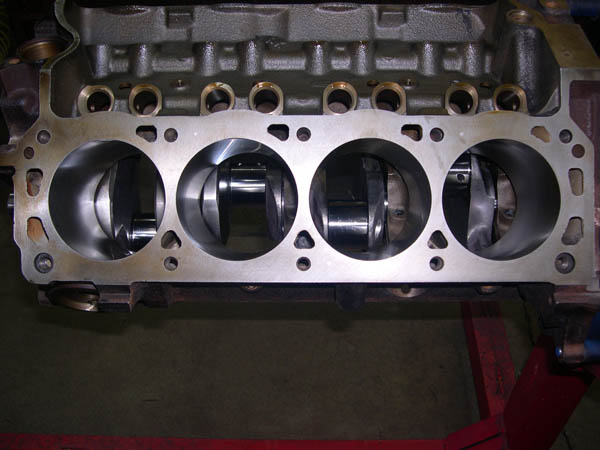

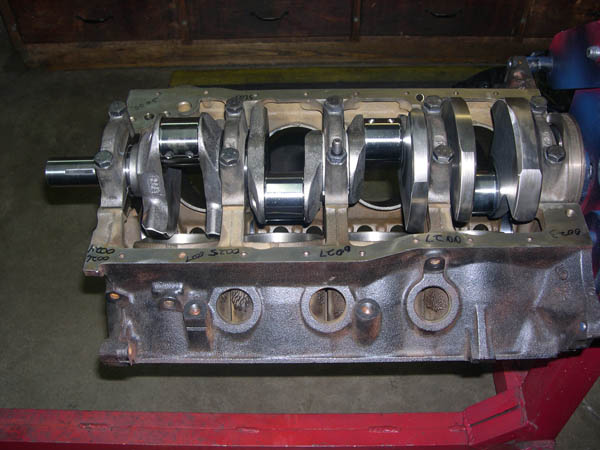

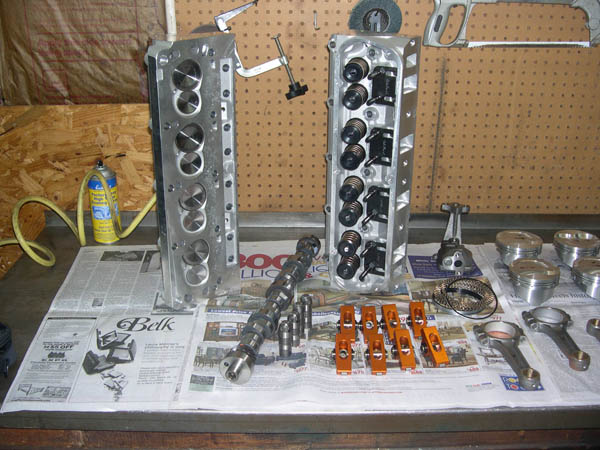

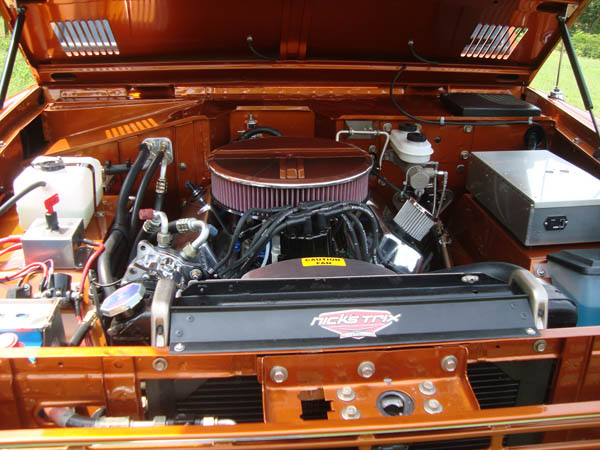

  • 347 cu. in. stroker engine built by Campbell Gear Tech

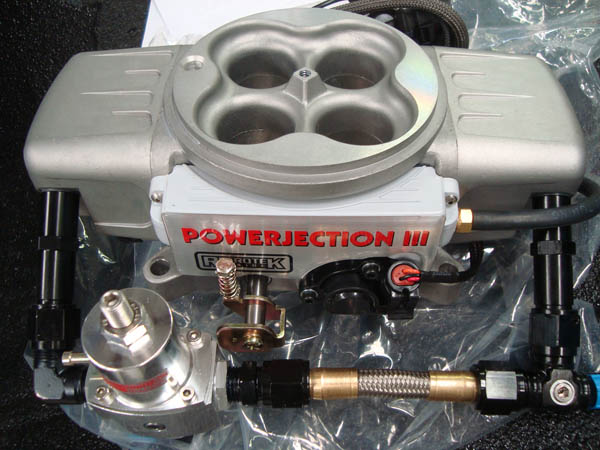

  • Retro Tek EFI
  • 140A 3G alternator
  • Stainless exhaust headers with Flowmaster mufflers
  • Goodridge Plumbing
  • Saginaw power steering pump
  • C4 Automatic trans & custom converter
  • Dana 20 transfer case
  • 4:30 final drive gear ratio with trac lock differentials
  • by Corey Trans.
  • Heavy duty banjo style rear axle housing
  • Extreme duty U-bolt package
  • High Efficiency core radiator with aluminum shroud
  • 7 blade mechanical fan
  • 35 in Toyo Open Country tires
  • Dick Cepek DC1 Aluminum Wheels
  • Mile Marker hubs
  • 3.5” lift Wild Horses coil & leaf springs
  • Bilstein shocks

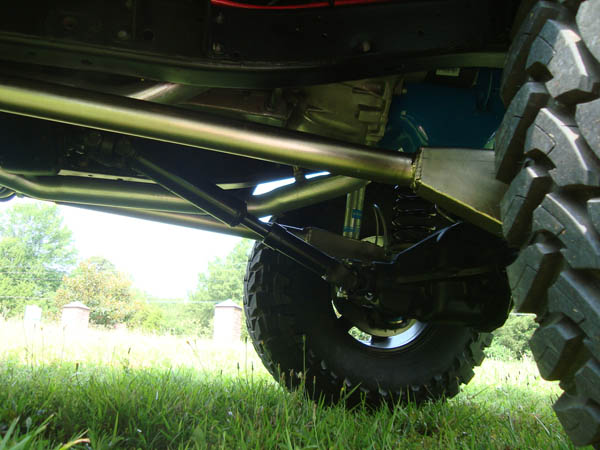

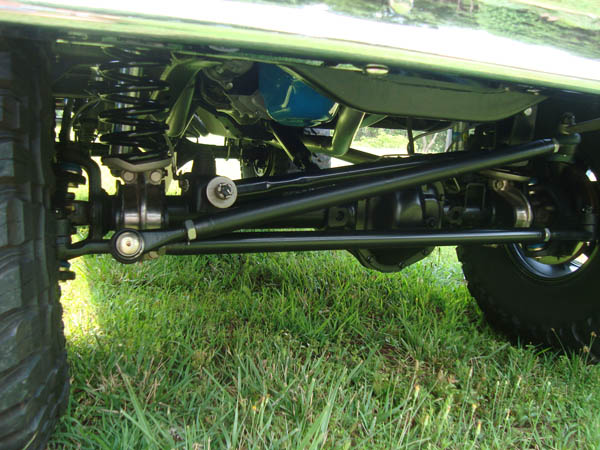

  • Duff long arms plated in electroless nickel
  • Adjustable track bar

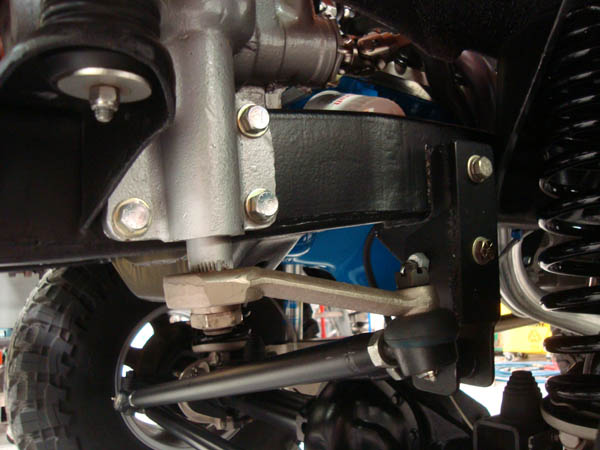

  • Heavy duty steering linkage
  • Disc brakes in front, heavy duty drums in rear
  • Ceramic Raybestos brake pads in front

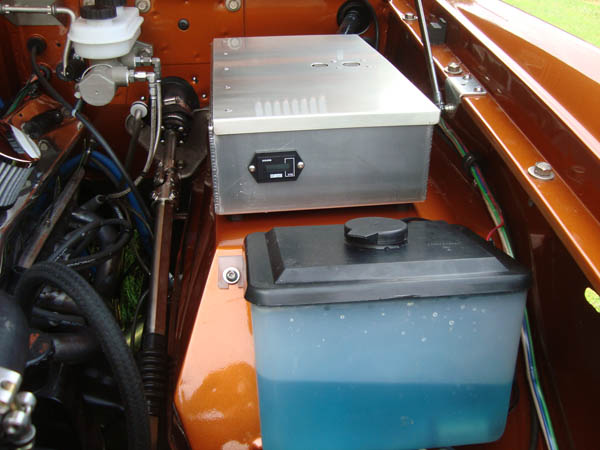

  • Oversized master cylinder
  • NT 2 inch billet body lift
  • NT drop wiper package
  • Grey suede, leather and Allante used throughout

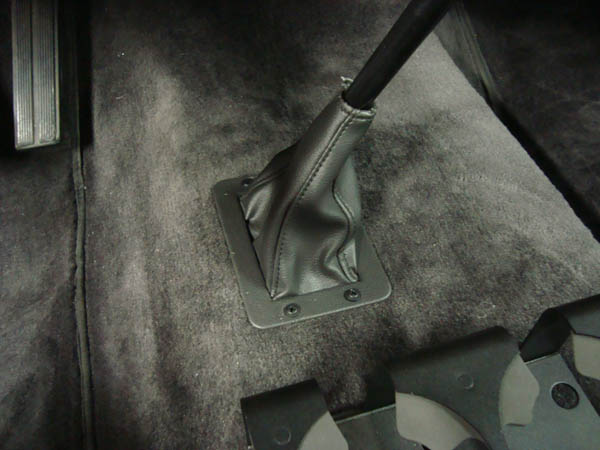

  • Hand fit custom carpet in grey short nap

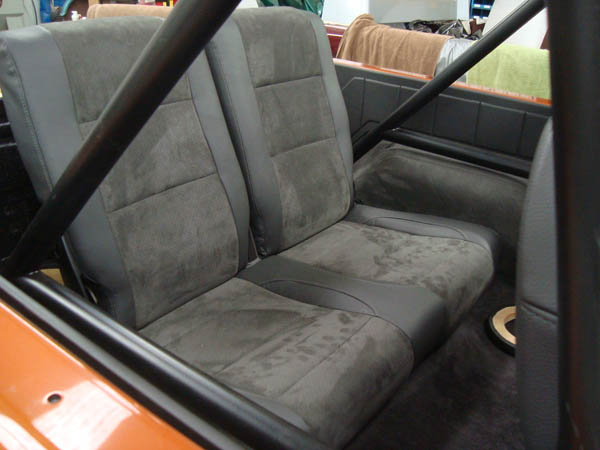

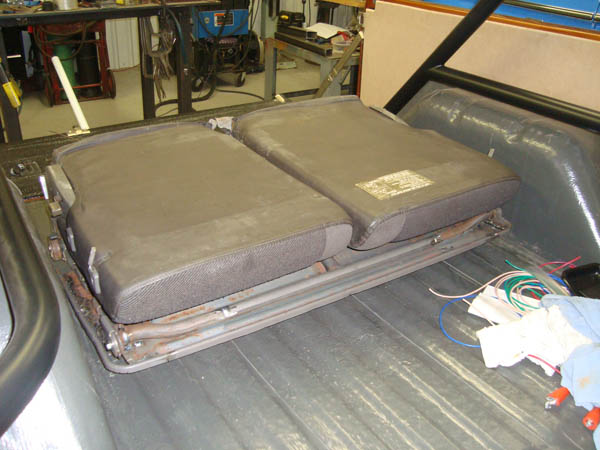

  • Custom made fold and tumble seat in rear

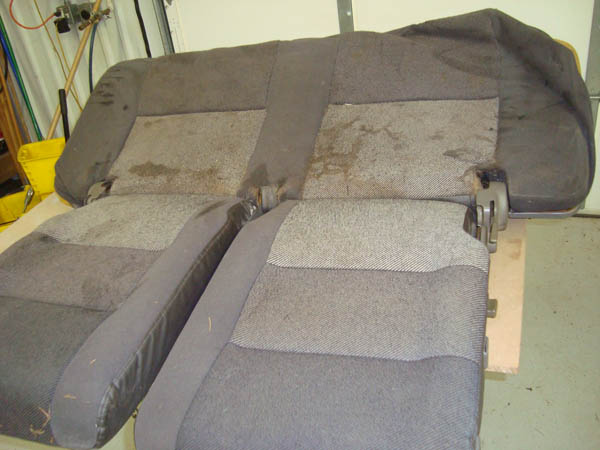

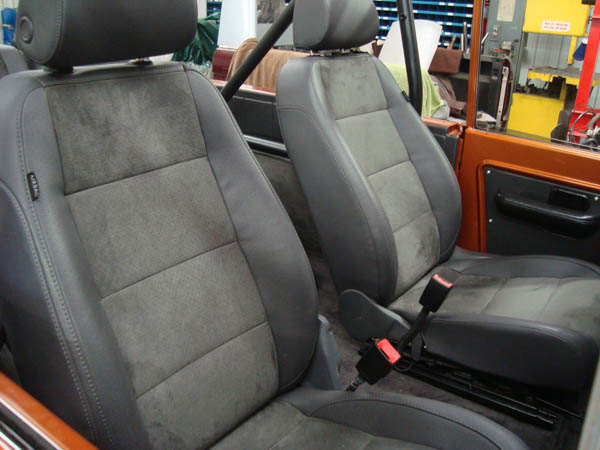

  • VW seats used in front
  • Custom rear panels with speaker stand outs

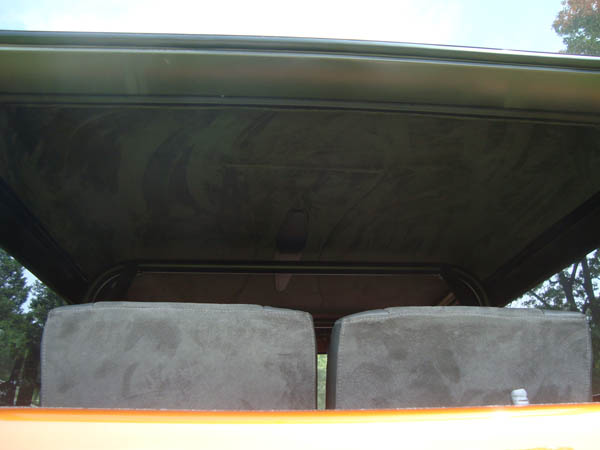

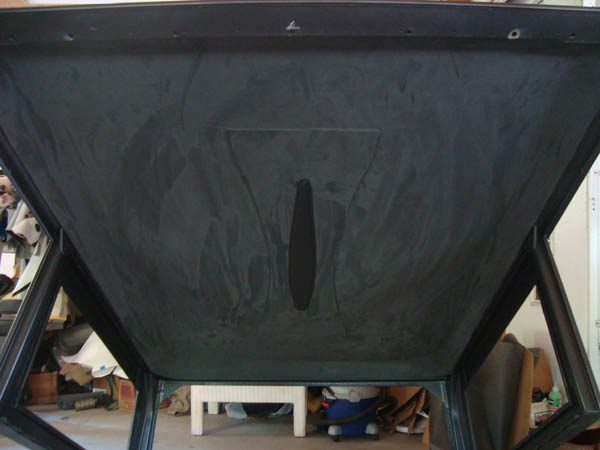

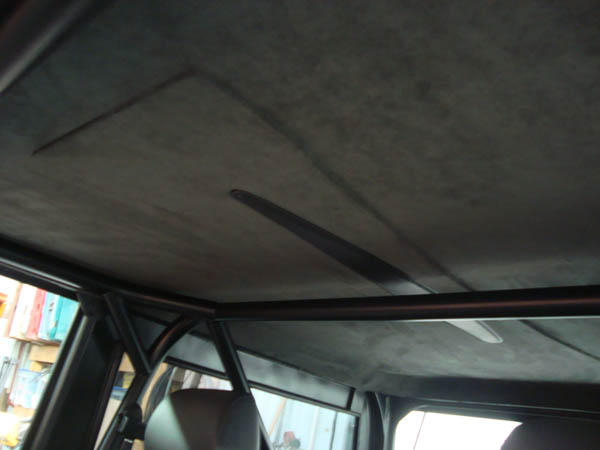

  • Seamless suede and leather headliner
  • all done by Pharr’s Custom Auto Interiors
  • Grey tint window glass, doors tempered, all others laminated
  • Window tint by Russo’s

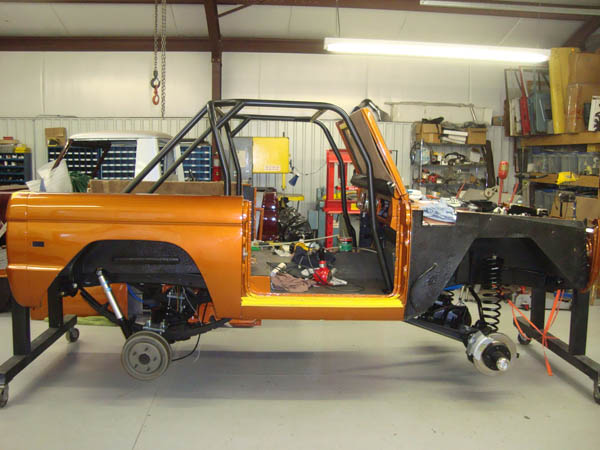

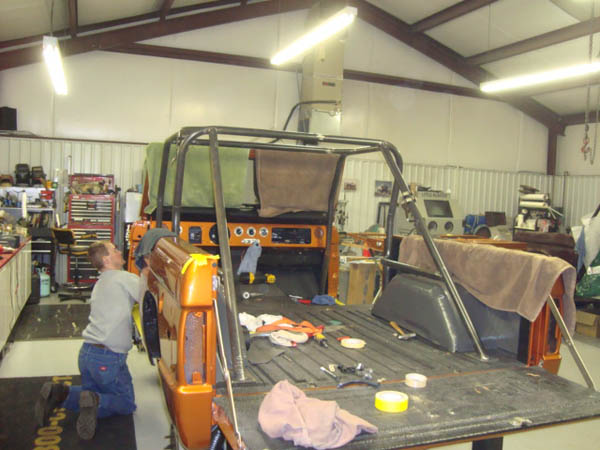

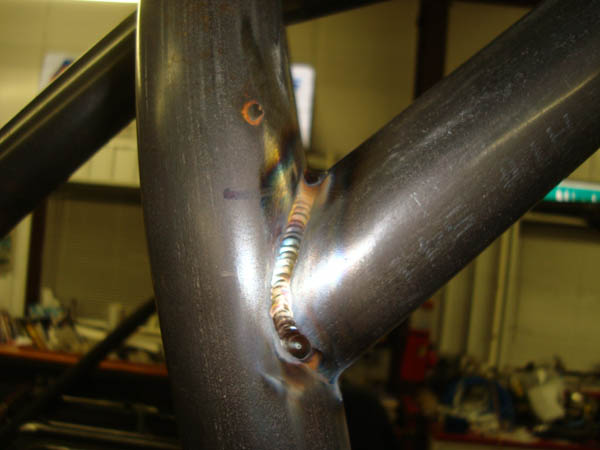

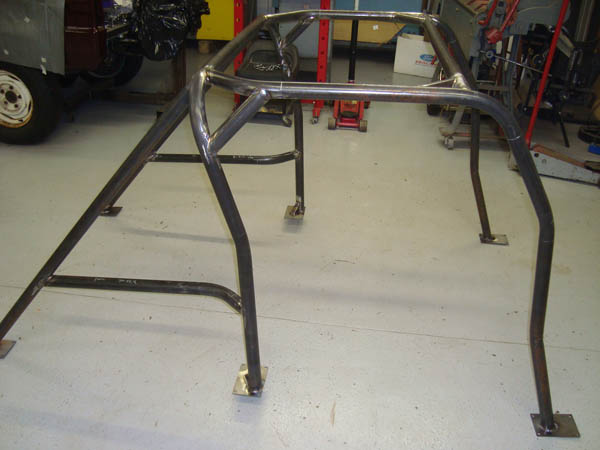

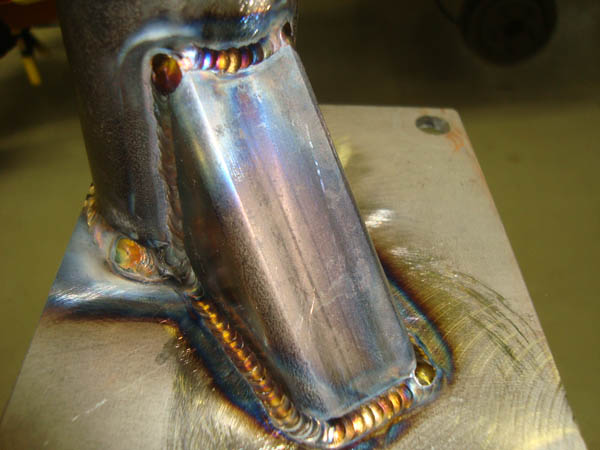

  • Sport roll cage, 4130 material, TIG welded
  • 3 point belts in front
  • 2 point lap belts in rear
  • Air conditioning with Vintage Air components

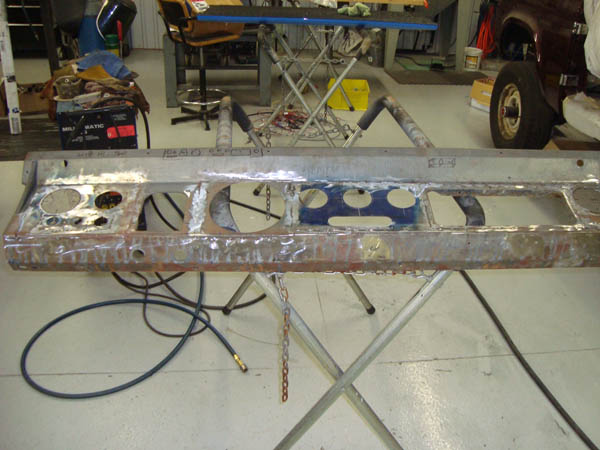

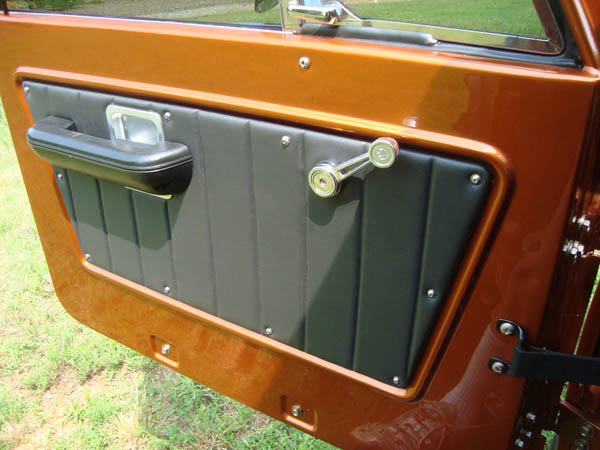

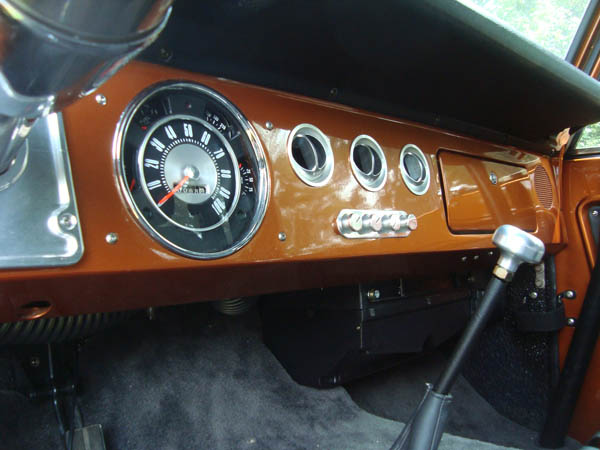

  • NT billet dress up items on doors and dash

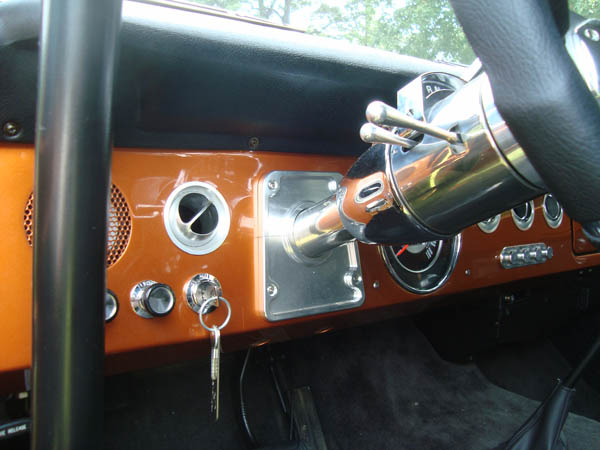

  • Flaming River polished tilt column

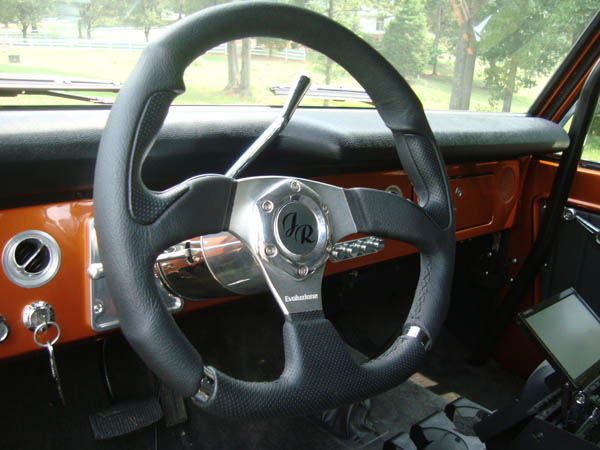

  • Flaming River steering wheel

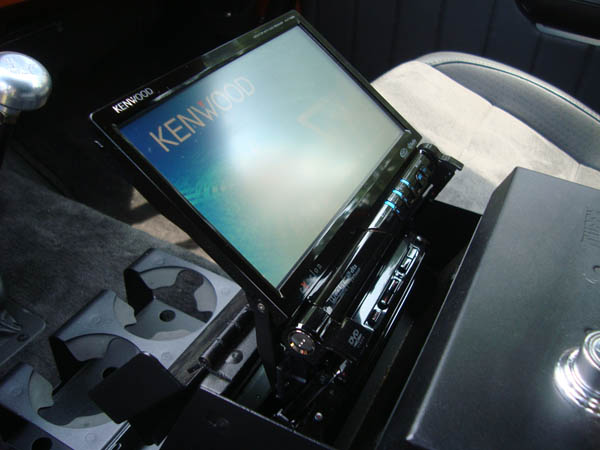

  • Kenwood stereo with IPod and Bluetooth

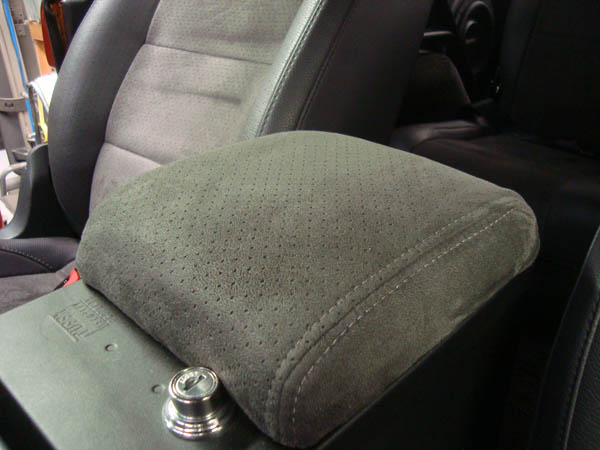

  • Tuffy consol
  • Polk & Alpine speakers

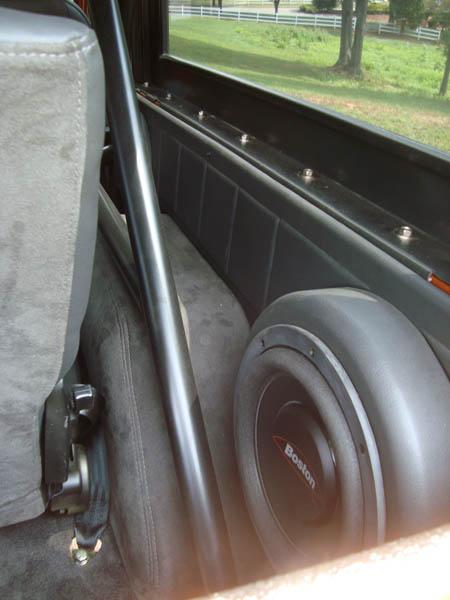

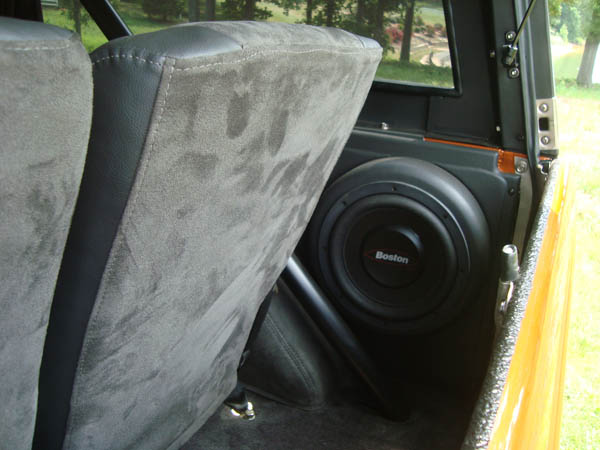

  • Boston 10 inch Sub
  • Kenwood & Rockford Fosgate Amplifiers

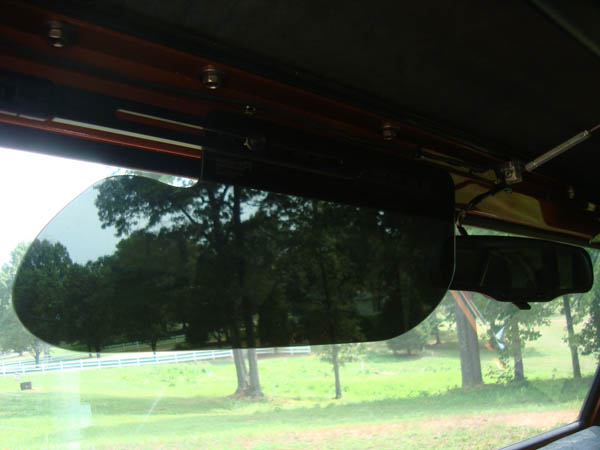

  • Rosen aircraft sun visors

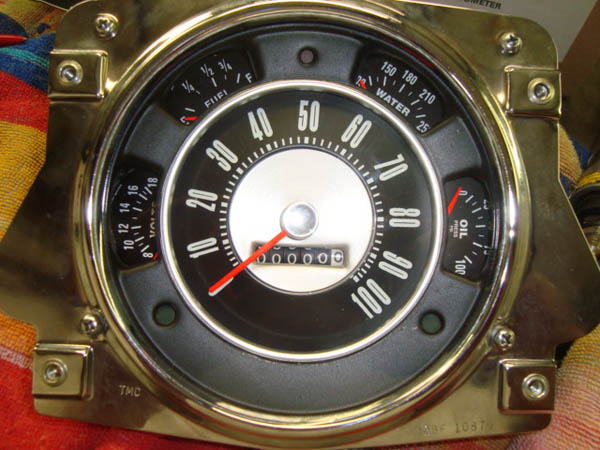

  • Full Autometer instrumentation
